Portable 6.0 cu ft Pneumatic Sandblast Pot – Gold Blasting Package, Pressure Release System, AMV II, 1-1/4″ Piping (150 PSI, 5/10 Yr Warranty)
Part Number: 201-1870-D
Weight: 608.84 lbs
Professional 6.0 cu ft (170 liter) portable abrasive blast pot engineered for continuous-duty industrial blasting and extended operation intervals. Equipped with a Pneumatic Pressure Release Remote System, the vessel automatically depressurizes when the operator releases the control handle—enhancing jobsite safety and reducing downtime.
Built with AMV II™ X-TREME Duty Metering Valve, 1-1/2″ high-flow inlet valve, 1″ diaphragm outlet valve, 1-1/4″ galvanized piping, and full-port airflow components to support high-volume abrasive delivery with consistent blast pressure and media flow.

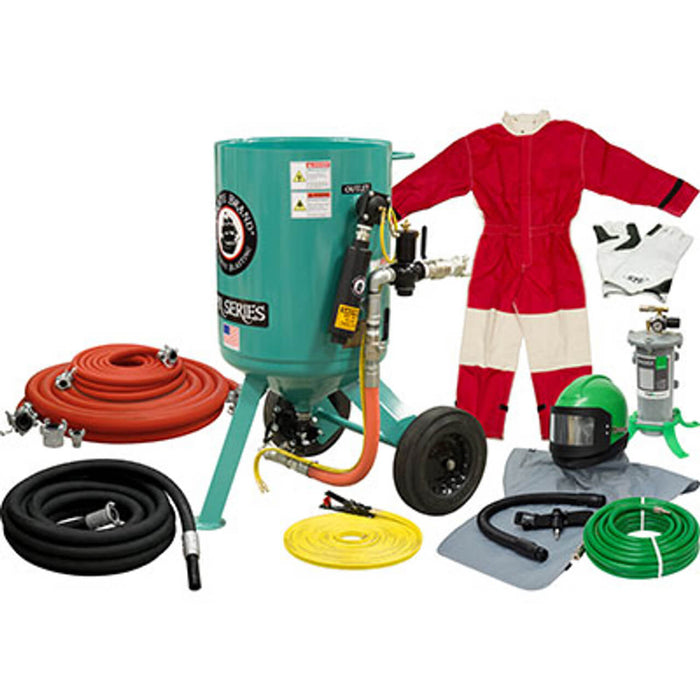

The Gold Blasting Package includes blast hose, nozzle, PPE, respirator system, and both ¾″ & 1-1/2″ air hose assemblies, making this model fully jobsite-ready for commercial blasting crews.
Specifications
| Feature | Detail |
|---|---|
| Capacity | 6.0 cu ft (170 liters) |
| Max Working Pressure | 150 PSI (10.3 bar) |
| System | Pneumatic Pressure Release |
| Inlet Valve | 1-1/2″ AMV II |
| Outlet Valve | 1″ Diaphragm Valve |
| Piping | 1-1/4″ Galvanized Steel (Corrosion Resistant) |
| Remote Controls | Pneumatic Handle + 50′ Twinline Hose Assembly |
| Vessel Certification | ASME Section VIII Div. 1 / CRN Certified |
| Warranty | 5-Year Pressure Vessel / 10-Year Structural |
OEM Cross Reference
| OEM Manufacturer | Equivalent Part # |
|---|---|
| Clemco / Aerolyte / Zero Products | 01187 |
Gold Blasting Package Includes
| Qty | Component | Description |
|---|---|---|
| (1) | 10-114BLK-050-3AL | 1-1/4″ Blast Hose Assembly w/ Couplings (50 ft) |
| (1) | 1348-555 | #5 Tungsten Carbide Nozzle (Poly-Jacketed) |
| (1) | 122-9150 | Lightweight Blast Suit (Large) |
| (1) | 407701 | Luxury Double-Palm Blast Gloves (Pair) |
| (1) | 407000-PFC | NOVA 2000® Air-Fed Respirator Package |
| (1) | 10-034RED-050-1 | 3/4″ Air Hose Assembly w/ Couplings (50 ft) |
| (1) | 10-112RED-050-1 | 1-1/2″ Air Hose Assembly w/ Couplings (50 ft) |
| (1) | UM-100 | 1″ Male NPT 2-Lug Air Hose Coupling |
| (1) | UF-150 | 1-1/2″ Female 4-Lug Air Hose Coupling |
Key Features & Performance Advantages
-
6.0 cu ft blast capacity allows reduced refill interruptions and longer production cycles
-
Pressure Release System automatically vents tank when remote handle is released
-
High-flow valve configuration (1-1/2″ in / 1″ out) ensures smooth abrasive feed
-
1-1/4″ galvanized piping increases corrosion resistance in humid environments
-
Full-port heavy-duty ball valves maintain optimal airflow for consistent blast pressure
-
Schedule 80 wear-resistant fittings stand up to abrasive media impacts
-
JIC pusher line fittings prevent sealing failures and gasket leaks
AMV II™ X-TREME Duty Metering Valve System
-
Engineered for steel grit + high-density media
-
Stainless steel metering plate and reinforced iron housing
-
Dual nylon wiper seals prevent abrasive contamination
-
Large service access ports simplify cleaning and inspection
-
Purge assist port enables rapid clearing of clogs via compressed air
-
Ergonomic heavy-duty handle for precise abrasive flow control
-
Lip seal + O-ring stack increases valve lifespan under abrasive load
Ideal Applications
-
Marine & Shipyard Surface Prep
-
Oilfield & Refinery Corrosion Removal
-
Bridge / Tank / Pipeline Restoration
-
Industrial Fabrication & Steel Structure Blasting
-
High-Volume Commercial Blasting Contractors
