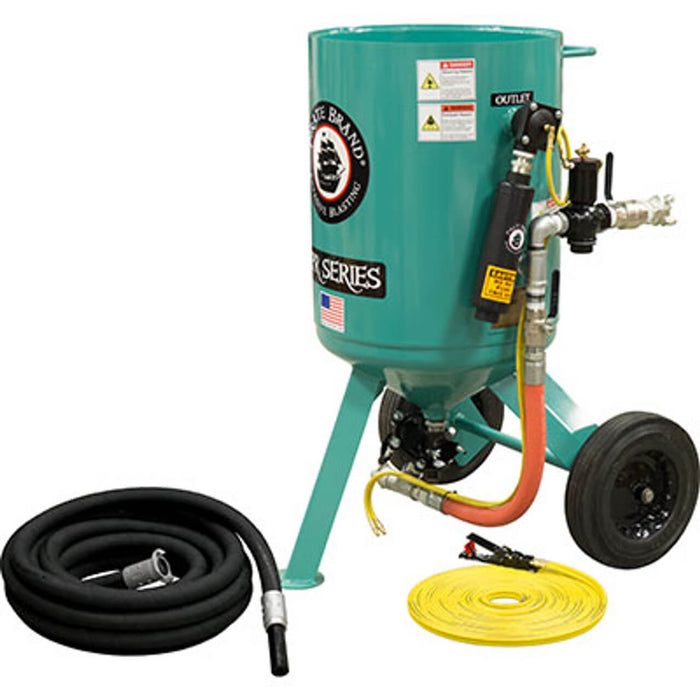

Portable 6.0 cu ft Pneumatic Sandblast Pot – Bronze Blasting Package, Pressure Release System, AMV II, 1-1/4″ Piping
Part Number: 201-1870-B
Weight: 499.57 lbs
Industrial-duty 6.0 cu ft (170 liter) portable abrasive blast pot designed for extended blasting cycles, consistent abrasive metering, and reliable jobsite performance. This unit is equipped with a Pneumatic Pressure Release remote system, providing automatic vessel depressurization when the remote handle is released to enhance operator safety and maintain efficient blasting workflow.
Features AMV II™ X-TREME Duty Metering Valve, 1-1/2″ high-flow inlet valve, 1″ diaphragm outlet valve, and 1-1/4″ galvanized piping for optimal airflow, corrosion resistance, and long service life.
The Bronze Blasting Package provides essential hose and nozzle components for immediate field operation.
Specifications
| Feature | Detail |
|---|---|
| Capacity | 6.0 cu ft (170 liters) |
| Max Working Pressure | 150 PSI (10.3 bar) |
| System | Pneumatic Pressure Release |
| Inlet Valve | 1-1/2″ AMV II |
| Outlet Valve | 1″ Diaphragm Valve |
| Piping | 1-1/4″ Galvanized Steel |
| Remote Control | Pneumatic Control Handle + 50′ Twinline Hose Assembly |
| Vessel Certification | ASME Section VIII, Div. 1 + CRN Certified |
| Warranty | 5-Year Pressure Vessel / 10-Year Structural |
OEM Cross Reference
| OEM Manufacturer | Equivalent Part # |
|---|---|
| Clemco / Aerolyte / Zero Products | 01187 |
Bronze Blasting Package Includes
| Qty | Component | Description |
|---|---|---|
| (1) | 10-114BLK-050-3AL | 1-1/4″ Blast Hose Assembly with Couplings (50 ft) |
| (1) | 1348-555 | #5 Tungsten Carbide Nozzle (Poly Jacket) |
Key Features & Advantages
-
6.0 cu ft blast capacity supports long blasting intervals with fewer refills.
-
Pressure Release remote system automatically blows down vessel for safety and fast shutdown.
-
1-1/2″ Inlet + 1″ Diaphragm Outlet Valves optimize media and air flow stability.
-
1-1/4″ Galvanized piping resists corrosion and extends system longevity.
-
Full-port heavy-duty ball valves maintain high airflow efficiency.
-
Schedule 80 wear-resistant fittings designed for abrasive flow environments.
-
JIC pusher line fittings eliminate gasket leak failures common in older blast pot designs.
AMV II™ X-TREME Duty Metering Valve
-
Works reliably with steel grit, slag, garnet, and heavy abrasives
-
Stainless steel metering plate & reinforced iron housing for durability
-
Dual nylon wiper seals protect internals from abrasive contamination
-
Large clean-out / inspection ports simplify maintenance and service access
-
Purge assist port allows rapid obstruction clearing with compressed air
-
Upgraded stem sealing system (lip seals + O-rings) provides extended component life
-
Heavy-duty ergonomic control handle enables precise abrasive feed adjustment
Ideal Applications
-
Industrial Equipment Refurbishment
-
Marine & Shipyard Surface Prep
-
Bridge & Steel Structure Coating Removal
-
Oilfield & Refinery Maintenance
-
General Contractor & Fabrication Blast Environments
