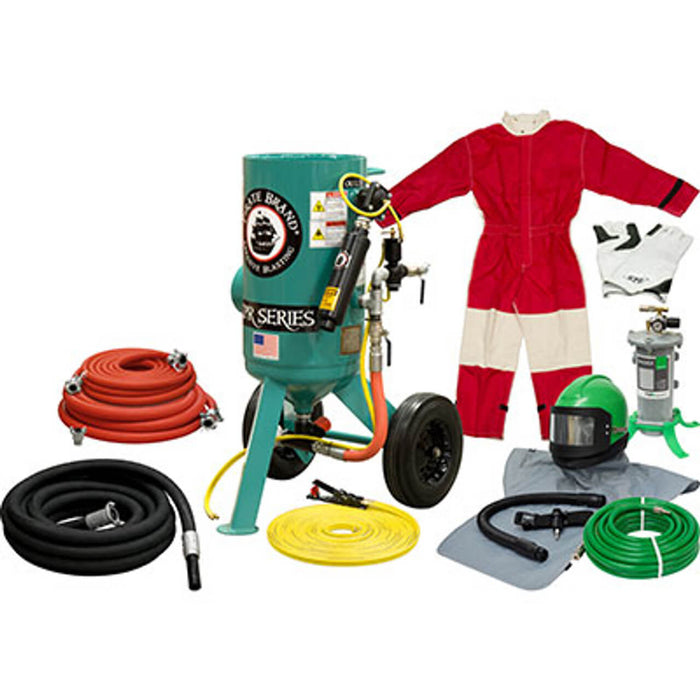

Portable 3.0 cu ft Pneumatic Sandblast Pot – Gold Blasting Package, Pressure Release System, MPV, 1″ Piping
Part Number: 201-1780-MPV-D
Weight: 452.63 lbs
Industrial 3.0 cu ft (85 liter) portable abrasive blast pot designed for professional surface preparation, field work, and contractor blasting operations. Equipped with a Pneumatic Pressure Release Control System, the vessel automatically depressurizes when the remote handle is released, improving operator safety and reducing downtime between blasting cycles.
This model features the MPV (Manual Plunger Valve) Metering System, providing simple, reliable abrasive feed adjustment with low maintenance requirements. Built with 1″ galvanized steel piping, 1″ inlet and outlet valves, and full-port air control components for smooth, dependable abrasive flow.
The Gold Blasting Package includes blast hose, nozzle, full PPE, respirator, and air hose assemblies, making this unit fully jobsite-ready for industrial blasting crews.
Specifications
| Feature | Detail |
|---|---|
| Capacity | 3.0 cu ft (85 liters) |
| Maximum Working Pressure | 150 PSI (10.3 bar) |
| System Type | Pneumatic Pressure Release |
| Metering Valve | MPV Manual Plunger Valve |
| Inlet Valve | 1″ |
| Outlet Valve | 1″ Diaphragm Valve |
| Piping | 1″ Galvanized Steel (Corrosion Resistant) |
| Remote Controls | Pneumatic Control Handle + 50′ Twinline Hose Assembly |
| Vessel Certification | ASME Section VIII, Div. 1 / CRN Certified |
| Warranty | 5-Year Pressure Vessel / 10-Year Structural |
OEM Cross Reference
| OEM Manufacturer | Equivalent Part # |
|---|---|
| Clemco / Aerolyte / Zero Products | 01178 |
Gold Blasting Package Includes
| Qty | Component | Description |
|---|---|---|
| (1) | 10-100BLK-050-3AL | 1″ Blast Hose Assembly w/ Couplings (50 ft) |
| (1) | 1201-1173 | #4 Tungsten Carbide All-Poly Nozzle |
| (1) | 122-9150 | Lightweight Blast Suit (Large) |
| (1) | 407701 | Luxury Double-Palm Blast Gloves (Pair) |
| (1) | 407000-PFC | NOVA 2000® Respirator Package (Air-Fed Helmet System) |
| (1) | 10-034RED-050-1 | 3/4″ Air Hose Assembly w/ Couplings (50 ft) |
| (1) | 10-100RED-050-1 | 1″ Air Hose Assembly w/ Couplings (50 ft) |
| (1) | UM-100 | 1″ Male NPT 2-Lug Air Hose Coupling |
Key Features & Advantages
-
3.0 cu ft blasting capacity supports repair, maintenance, and mobile field operations
-
Automatic blow-down system when remote handle is released
-
Simple MPV metering valve allows easy abrasive flow adjustment
-
1″ galvanized piping resists corrosion in high-moisture environments
-
Full-port ball valves maintain airflow and reduce pressure drop
-
Schedule 80 wear components provide long service in abrasive flow paths
-
JIC-style pusher line fittings eliminate gasket failure and seal compression problems
MPV Metering Valve Benefits
-
Field-proven, simple, durable design
-
Wide abrasive flow adjustment range
-
Ideal for crushed glass, slag, garnet, and expendable media
-
Best suited for contractors, shops, municipalities, and mobile services
Ideal Applications
-
On-Site Equipment Refurbishment
-
Automotive / Trailer / Frame Restoration
-
Fabrication and Weld Prep
-
Municipal & Public Works Maintenance
-
Small-to-Mid Industrial Surface Cleaning
