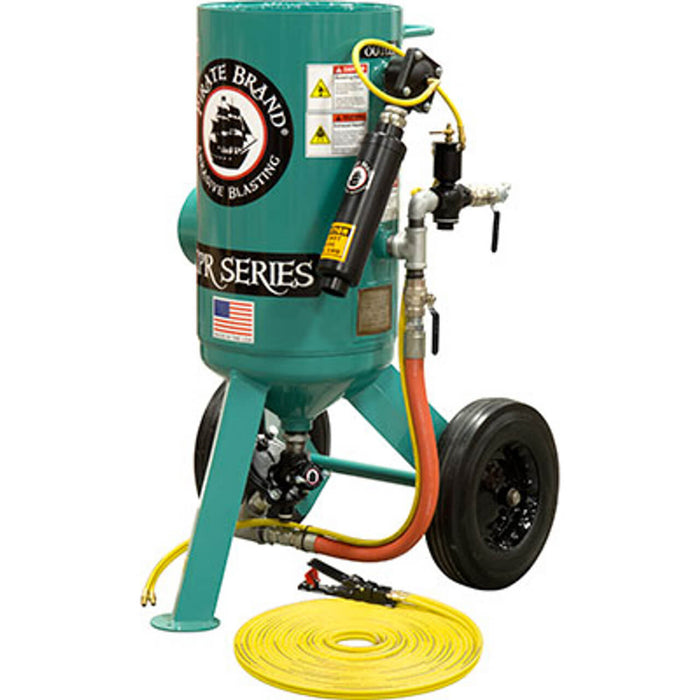

Portable 3.0 cu ft Pneumatic Sandblast Pot – Bronze Sandblasting Package, Pressure Release System, 1″ Piping with Moisture Separator
Part Number: 201-1780-B
Weight: 375.74 lbs
Industrial-grade 3.0 cu ft portable abrasive blast pot designed for high-production blasting with steel grit and mineral abrasives. Includes the AMV II X-TREME Duty Metering Valve, 1″ inlet/outlet valves, 1″ galvanized piping, and a pressure release pneumatic remote control system with 50′ twinline hose.
This model includes the Bronze Sandblasting Package for jobsite-ready blasting capability.
Specifications
| Feature | Detail |
|---|---|
| Capacity | 3.0 cu ft (85 liters) |
| Max Working Pressure | 150 PSI (10.3 bar) |
| System | Pneumatic Pressure Release |
| Inlet Valve | 1″ AMV II |
| Outlet Valve | 1″ Diaphragm Valve |
| Piping | 1″ Galvanized Steel |
| Remote Control | Pneumatic Control Handle + 50′ Twinline Hose |
| Warranty | 5-Year Pressure Vessel / 10-Year Structural |
OEM Cross Reference
| OEM Manufacturer | Equivalent Part # |
|---|---|
| Clemco / Aerolyte / Zero Products | 01178 |
Bronze Sandblasting Package Includes
| Qty | Component | Description |
|---|---|---|
| (1) | 10-100BLK-050-3AL | 1″ Blast Hose Assembly w/ Couplings (50 ft) |
| (1) | 1201-1173 | #4 Tungsten Carbide All-Poly Blast Nozzle |
(Add suit / gloves / airline filter etc for Silver/Gold versions — this is the basic operation package.)
Key Features & Benefits
-
3.0 cu ft capacity allows longer blasting cycles between refills
-
Automatic blow-down when remote handle is released for safety
-
1″ inlet & diaphragm outlet valves provide unrestricted airflow for consistent media delivery
-
1″ galvanized piping improves corrosion protection and longevity
-
Full-port heavy-duty ball valves maximize air efficiency
-
Schedule 80 wear-resistant nipple extends piping service life under abrasive flow
-
JIC pusher line fittings eliminate gasket leaks and sealing failures
AMV II™ X-TREME Duty Metering Valve Advantages
-
Engineered specifically for steel grit + heavy abrasives
-
Stainless steel metering plate with reinforced cast iron housing
-
Dual nylon wiper seals prevent abrasive contamination and jamming
-
Large clean-out & drain ports for fast service access
-
Purge air assist port allows rapid clearing of obstructions
-
Heavy-duty control handle for precise abrasive feed adjustment
-
Upgraded stem sealing system (lip seals + O-rings) for extended valve lifespan
