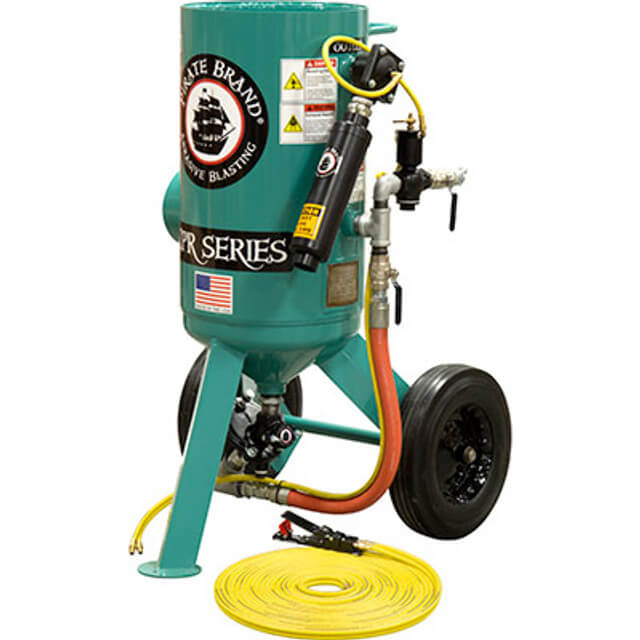

Portable 3.0 cu ft Pneumatic Blast Pot – Pressure Release System with AMV II 1″ Inlet/Outlet Valves, 1″ Piping, 50′ Twin-Line Hose & Control Handle

Part Number: 201-1780-A
Weight: 320.69 lbs

Industrial-grade 3.0 cu ft portable abrasive blast pot built for high-production sandblasting applications. Equipped with the AMV II X-TREME Duty Metering Valve, 1″ diaphragm outlet, 1″ piping, and a pneumatic remote control system with 50′ twinline hose. Designed for use with steel grit and other heavy blasting media. Includes a 5-Year / 10-Year Manufacturer Warranty.*

Specifications

• Capacity: 3.0 cu ft (85 liters)

• Max Working Pressure: 150 PSI (10.3 bar)

• System Type: Pneumatic Pressure Release

• Inlet Valve: 1″ AMV II

• Outlet Valve: 1″ Diaphragm Valve

• Piping: 1″ Galvanized Steel

• Remote Control: Pneumatic Control Handle w/ 50′ Twinline Hose Assy

• Certifications: ASME Section VIII Div. 1 / CRN Certified

• Warranty: 5-Year Pressure Vessel / 10-Year Structural Warranty*

OEM Cross Reference

Features & Benefits

• 3.0 cu ft blast media capacity for extended operation between fills

• Automatic blow-down when control handle is released

• 1″ inlet and diaphragm outlet valves for full-flow blasting performance

• 1″ galvanized piping for corrosion protection and long service life

• Heavy-duty full-port ball valves improve air efficiency

• Schedule 80 heavy-duty nipples resist abrasive wear in high-flow environments

• Pusher line uses JIC fittings to eliminate gasket failures and air leaks

AMV II™ X-TREME Duty Metering Valve Advantages

• Designed for steel grit and hard abrasives

• Stainless steel metering plate with reinforced iron valve housing

• Dual nylon wiper seals prevent abrasive ingress and jamming

• Large clean-out and drain ports for fast maintenance access

• Purge port allows compressed air to flush blockages directly through drain

• Heavy-duty high-grip handle for precise abrasive flow control

• Enhanced stem sealing using stacked lip-seals + O-rings for extended valve life
