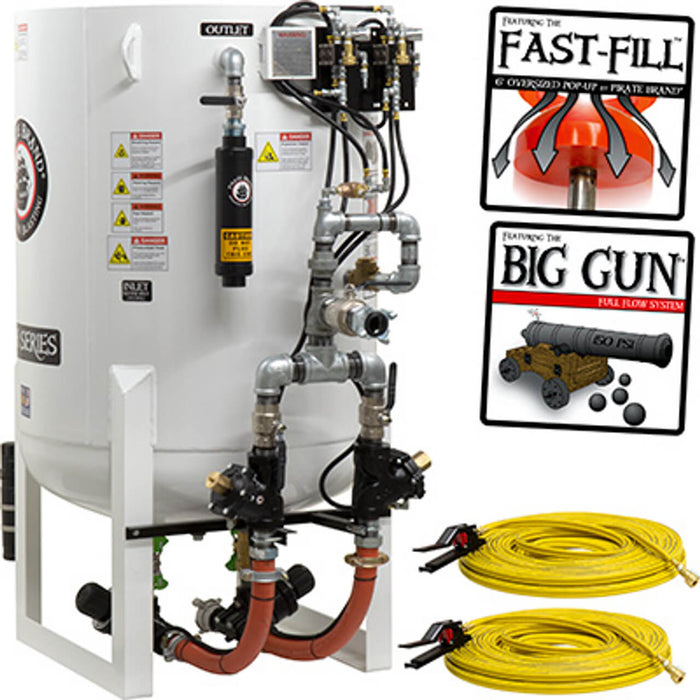

20.0 cu ft Stationary Pneumatic Blast Pot – Dual Outlet Pressure Hold System with Hose-Mounted Abrasive Cut-Off Feature, 65″ Overall Height

Part Number: 888-2941-33900PB-E
Weight: 845.00 LBS
Category: Abrasive Blast Pot / Sandblasting Machine

Configuration:

• Stationary Blast Pot – Dual Outlet

• 20.0 CU. FT. (570 Liters)

• 150 PSI (10.3 BAR)

• Pressure Hold System

• Pneumatic Operation with Vessel-Mounted Abrasive Cut-Off Feature

• Overall Height (OAH): 65″

• Includes:

  • 11″ Umbrella

  • 6″ Fast-Fill™ Pop-Up

  • (2) APV II Valves with Tungsten Carbide Sleeves & Auto Air Valves

  • Big Gun Full Flow System

  • Union End Ball Valve

  • 1-1/2″ Piping / 2″ Inlet

  • (2) 110′ Twin-Line Assemblies & (2) Control Handle #2

  • 5-Year / 10-Year Warranty*

• Documents:
  • Brochure
  • Manual
  • How It Works
  • Warranty

Features & Benefits – SPH Pneumatic APV II Big Gun Full Flow System

20.0 CU. FT. Capacity (570 Liters)

• 150 PSI vessel (10.3 BAR)

• A.S.M.E. Section VIII Division 1 certified

• CRN approved for all provinces

Pressure Hold System

• Reduces abrasive consumption and overall operational costs

• Minimizes moisture issues during extended blasting sessions

• Ensures smoother, more consistent starts and stops

Big Gun Full Flow System

• Provides a zero-pressure-drop path for air and abrasive flow

• Each 1 PSI variation equals roughly 1.5% production change

• Designed for #7 and #8 nozzles

• Premium APV II abrasive metering valves for consistent, accurate flow

• Full-port coupling ensures unrestricted abrasive travel to the nozzle

800 CFM Moisture Separator Upgrade Available (Not Included)

1-1/2″ Galvanized Piping / 2″ Inlet

• Corrosion-resistant and built for long-term durability

Heavy-Duty Full Port Ball Valves

Extended Life Schedule 80 Heavy-Duty Nipple

• Superior wear resistance for extended component lifespan

Bolt Clamps on Pusher Line

• Simplifies maintenance and allows for easy field repairs

Normally Closed Valves

• APV II premium metering valve with quadruple plunger seals prevents air and abrasive carry-over

• Solid machined Tungsten Carbide plunger and sleeve for superior wear life

• 1″ NPT cleanout port for quick access to obstructions and vessel drainage

• Full-flow Auto Air Valves allow rapid start/stop control

• Heavy-duty filtered control valve minimizes stop time when handle is released

• Relieving control handle reduces air usage and improves efficiency

Blowdown Muffler

• Reduces noise during depressurization for quieter operation

11″ Adjustable Spider

• Fully adjustable for various abrasive media types and sizes

• Prevents abrasive weight from resting on pop-up during hopper feed for better sealing

6″ Fast-Fill Pop-Up & Skirted Pop-Up Gasket

• Fast-Fill design drastically reduces refill time

• Skirted gasket design slices through abrasive for secure sealing

• Prevents abrasive “burping” seen in hopper-fed systems

• Essential for use with large-grit abrasives

Union End Ball Valves

• Allows maintenance and valve servicing without dumping abrasive contents

Full Load Lifting Eyes

• Enables safe lifting and positioning for maintenance or relocation
