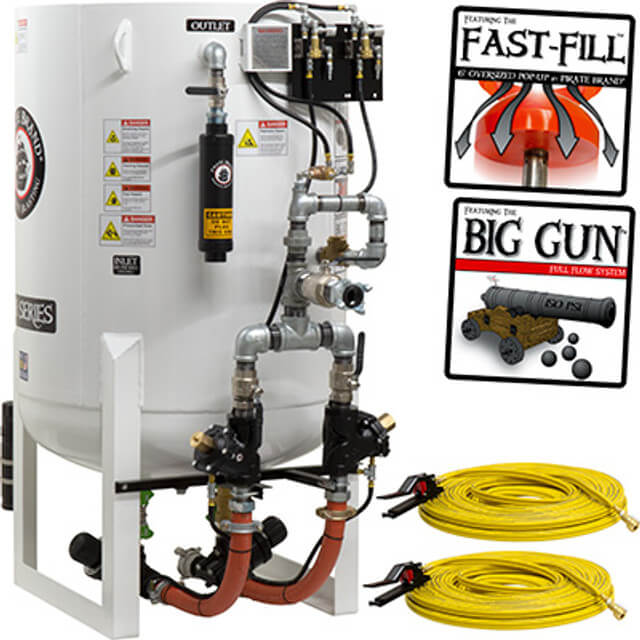

20.0 cu ft Stationary Pneumatic Blast Pot – 2-Outlet Pressure Hold System with APV II Valves, Tungsten Carbide Sleeves, Auto Air Valves & 1-1/2″ Piping / 2″ Inlet

Part Number: 888-0941-33900PB-E
Weight: 845.00 LBS
Category: Abrasive Blast Pot / Sandblasting Machine

Configuration:

• Stationary Blast Pot – Dual Outlet

• 20.0 CU. FT. (570 Liters)

• 150 PSI (10.3 BAR)

• Pressure Hold System

• Pneumatic Operation

• Overall Height (OAH): 65″

• Includes:

  • 11″ Umbrella

  • 6″ Fast-Fill™ Pop-Up

  • (2) APV II Valves with Tungsten Carbide Sleeves & Auto Air Valves

  • Big Gun Full Flow System

  • Union End Ball Valve

  • 1-1/2″ Piping / 2″ Inlet

  • (2) 110′ Twin-Line Assemblies & (2) Control Handle #2

  • 5-Year / 10-Year Warranty*

• Documents:
  • Brochure
  • Manual
  • How It Works
  • Warranty

Features & Benefits – SPH Pneumatic APV II Big Gun Full Flow System

20.0 CU. FT. Capacity (570 Liters)

• 150 PSI vessel (10.3 BAR)

• A.S.M.E. Section VIII Division 1 certified

• CRN approved for all provinces

Pressure Hold System

• Reduces abrasive consumption and operating costs

• Minimizes moisture-related problems during extended blasting sessions

• Provides smoother start and stop operation

Big Gun Full Flow System

• Maintains a zero-pressure-drop air and abrasive path

• Each 1 PSI change in pressure results in approximately 1.5% production variation

• Designed for #7 and #8 nozzle sizes

• Premium APV II abrasive metering valves for precise control

• Full-port coupling allows unrestricted abrasive flow to the nozzle

800 CFM Moisture Separator Upgrade Available (Not Included)

1-1/2″ Galvanized Piping / 2″ Inlet

• Corrosion-resistant construction for long-term durability

Heavy-Duty Full Port Ball Valves

Extended Life Schedule 80 Heavy-Duty Nipple

• Provides superior resistance to abrasive wear and longer service life

Bolt Clamps on Pusher Line

• Simplifies field maintenance and enables easy hose replacement

Normally Closed Valves

• APV II Premium Abrasive Metering Valve with quadruple plunger seal prevents air/abrasive carry-over

• Solid machined Tungsten Carbide plunger and sleeve for extended wear life

• 1″ NPT cleanout port allows fast access to remove obstructions or drain vessel

• Full-flow Auto Air Valves ensure rapid start/stop response

• Heavy-duty filtered control valve minimizes stopping time

• Relieving control handle conserves air and reduces consumption

Blowdown Muffler

• Reduces unnecessary noise during depressurization

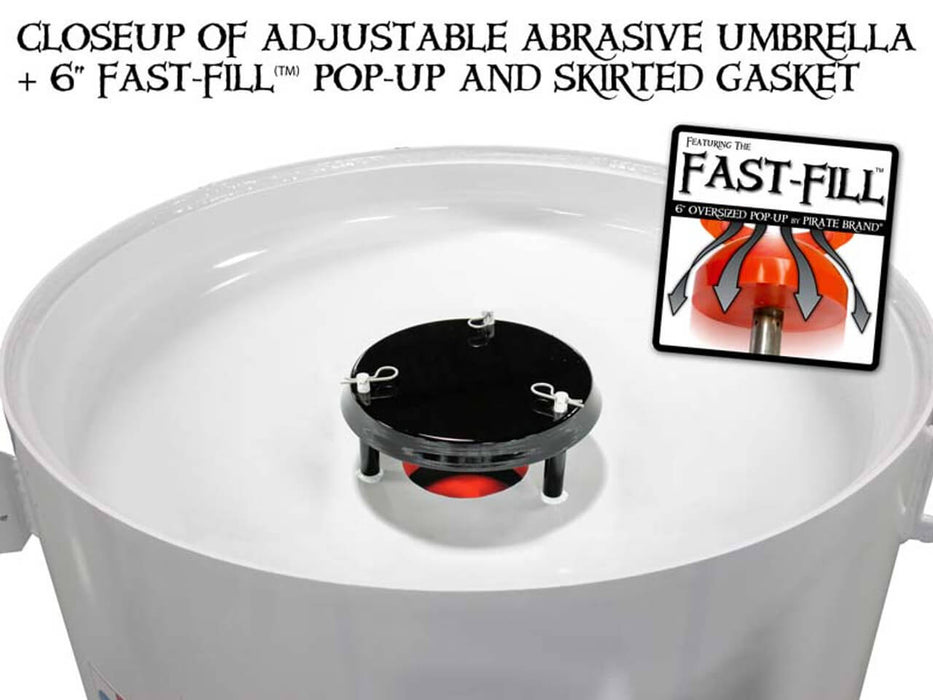

11″ Adjustable Spider

• Fully adjustable for various abrasive media types and sizes

• Keeps abrasive weight off pop-up for proper sealing during hopper feed

6″ Fast-Fill Pop-Up & Skirted Pop-Up Gasket

• Fast-Fill design reduces refill time

• Skirted gasket design cuts through abrasive for reliable sealing

• Prevents “burping” common in hopper-fed systems

• Recommended when using large-grit abrasives

Union End Ball Valves

• Enables valve maintenance or repairs without dumping the abrasive vessel

Full Load Lifting Eyes

• Allows safe handling and positioning of the vessel during maintenance
