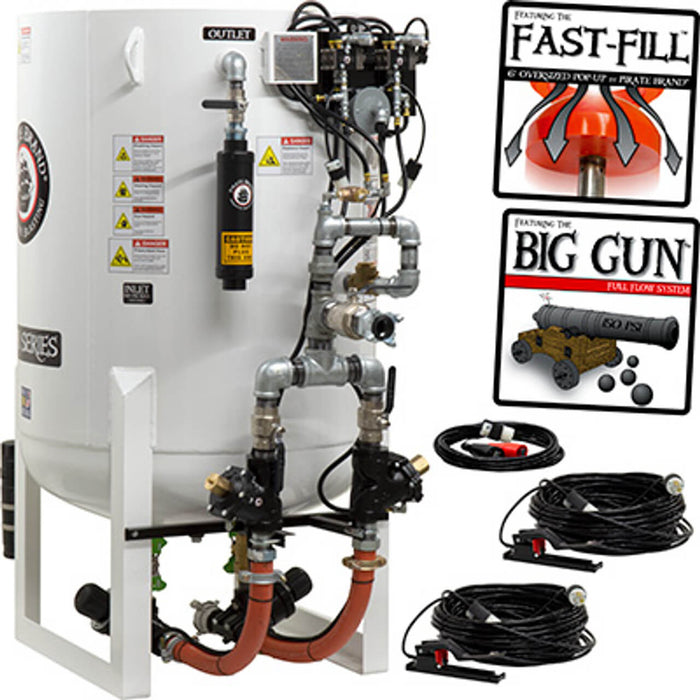

20.0 cu ft Stationary Electric Blast Pot – Dual Outlet Pressure Hold System with Vessel-Mounted Abrasive Cut-Off Feature, 65″ Overall Height (OAH)

Part Number: 888-2942-33900PB-E
Weight: 845.00 LBS
Category: Abrasive Blast Pot / Sandblasting Machine

Configuration:

• Stationary Blast Pot – Dual Outlet

• 20.0 CU. FT. (570 Liters)

• 150 PSI (10.3 BAR)

• Pressure Hold System

• Electric Operation (12VDC) with Vessel-Mounted Abrasive Cut-Off Feature

• Overall Height (OAH): 65″

• Includes:

  • 11″ Umbrella

  • 6″ Fast-Fill™ Pop-Up

  • (2) APV II Valves with Tungsten Carbide Sleeves & Auto Air Valves

  • Big Gun Full Flow System

  • Union End Ball Valve

  • 1-1/2″ Piping / 2″ Inlet

  • (2) 110′ Control Cords & (2) Control Handle #2

  • 5-Year / 10-Year Warranty*

• Note: When using steel abrasives, Electric Control Handle #2 (888-2263-401PB) and Sealed Connector(s) (PB-31131) are required.

• Documents:
  • Brochure
  • Manual
  • How It Works
  • Warranty

Features & Benefits – SPH Electric APV II Big Gun Full Flow System

20.0 CU. FT. Capacity (570 Liters)

• 150 PSI vessel (10.3 BAR)

• A.S.M.E. Section VIII Division 1 certified

• CRN approved for all provinces

Pressure Hold System

• Reduces abrasive consumption for more efficient operation

• Minimizes moisture-related issues

• Provides smoother start and stop functionality

Electric Controls (12VDC)

• Provides faster start/stop response when operating long hose runs (100+ ft)

• Helps reduce freezing issues in colder environments

• Heavy-duty filtered control valve reduces stopping time

Big Gun Full Flow System

• Maintains a zero-pressure-drop path for maximum efficiency

• For every 1 PSI gained or lost, production changes by ~1.5%

• Optimized for #7 and #8 nozzle applications

• Premium APV II abrasive metering valve provides precise flow control

• Full-port coupling allows unrestricted air and abrasive travel

800 CFM Moisture Separator Upgrade Available (Not Included)

1-1/2″ Galvanized Piping / 2″ Inlet

• Corrosion-resistant for long service life

Heavy-Duty Full Port Ball Valves

Extended Life Schedule 80 Heavy-Duty Nipple

• Engineered to withstand high abrasive wear

Bolt Clamps on Pusher Line

• Simplifies field maintenance and repair

Normally Closed Valves

• Premium APV II metering valve with quadruple plunger seal eliminates abrasive carry-over

• Solid machined Tungsten Carbide plunger & sleeve ensures exceptional wear resistance

• 1″ NPT cleanout port provides access for clearing obstructions or draining the vessel

• Full-flow Auto Air Valve allows for quick start/stop operation

• Filtered control valve minimizes delay time on release

• Relieving handle design reduces air consumption and improves stop control

Blowdown Muffler

• Significantly reduces noise levels during depressurization

11″ Adjustable Spider

• Fully adjustable for various abrasive media types and sizes

• Prevents abrasive weight from resting on pop-up, ensuring proper sealing

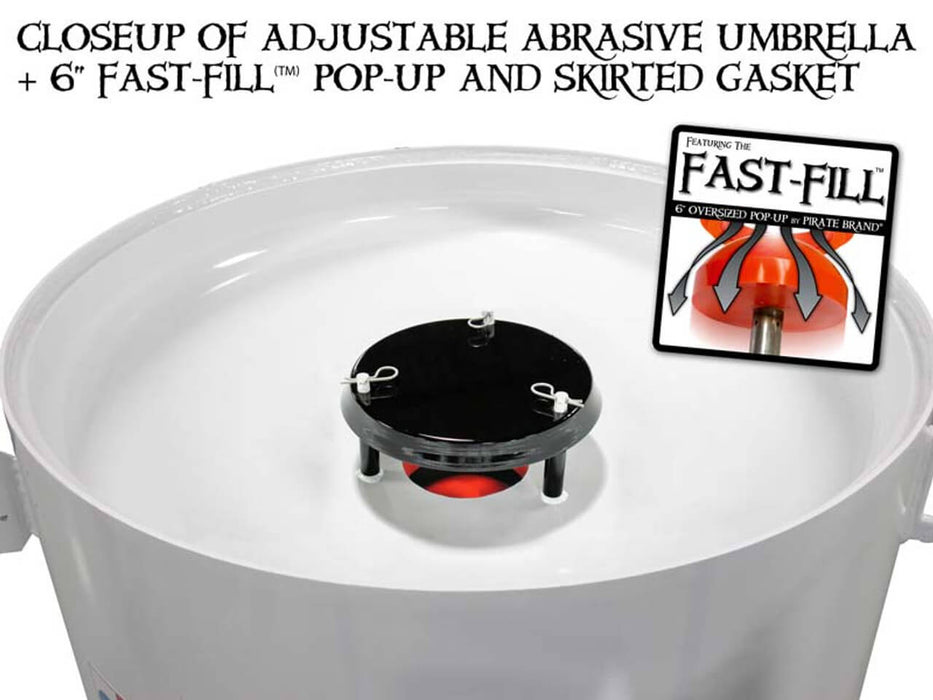

6″ Fast-Fill Pop-Up & Skirted Pop-Up Gasket

• Larger design dramatically reduces refill time

• Skirted gasket slices through abrasive for optimal sealing

• Prevents abrasive “burping” in hopper-fed systems

• Essential when using large-grit abrasives

Union End Ball Valves

• Allow valve servicing without emptying the vessel

Full Load Lifting Eyes

• Provides safe lifting and transport capability for placement or maintenance
