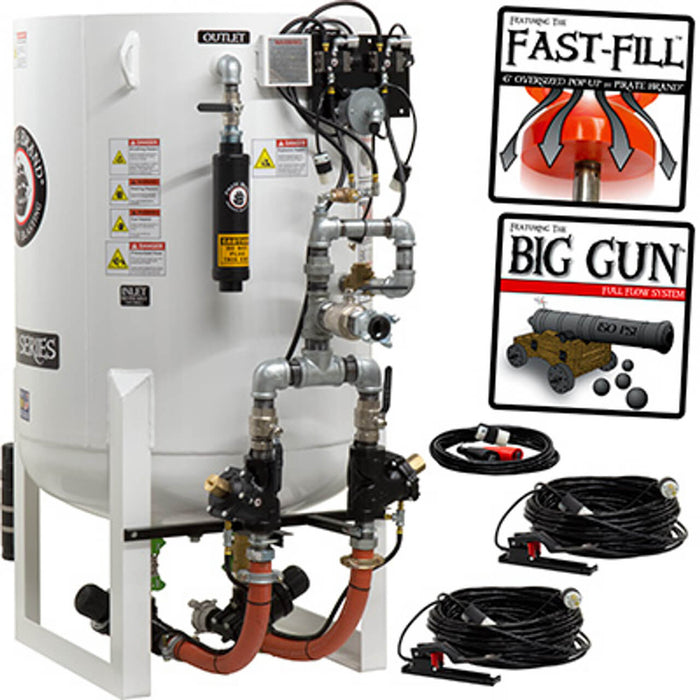

20.0 cu ft Stationary Electric Blast Pot – Dual Outlet Pressure Hold System with APV II Valves (Tungsten Carbide Sleeves & Auto Air Valves), 1-1/2″ Piping / 2″ Inlet

Part Number: 888-0942-33900PB-E
Weight: 845.00 LBS
Category: Abrasive Blast Pot / Sandblasting Machine

Configuration:

• Stationary Blast Pot – Dual Outlet

• 20.0 CU. FT. (570 Liters)

• 150 PSI (10.3 BAR)

• Pressure Hold System

• Electric Operation (12VDC)

• Overall Height (OAH): 65″

• Includes:

  • 11″ Umbrella

  • 6″ Fast-Fill™ Pop-Up

  • (2) APV II Valves with Tungsten Carbide Sleeves & Auto Air Valves

  • Big Gun Full Flow System

  • Union End Ball Valve

  • 1-1/2″ Piping / 2″ Inlet

  • (2) 110′ Control Cords & (2) Control Handle #2

  • 5-Year / 10-Year Warranty*

• Note: When using steel abrasives, Electric Control Handle #2 (888-2263-401PB) and Sealed Connector(s) (PB-31131) are required.

• Documents:
  • Brochure
  • Manual
  • How It Works
  • Warranty

Features & Benefits – SPH Electric APV II Big Gun Full Flow System

20.0 CU. FT. Capacity (570 Liters)

• 150 PSI vessel (10.3 BAR)

• A.S.M.E. Section VIII Division 1 certified

• CRN approved for all provinces

Pressure Hold System

• Reduces abrasive consumption and air loss

• Minimizes moisture-related issues during operation

• Ensures smoother starts and stops

Electric Controls (12VDC)

• Provides faster response for stop/start cycles over long hose runs (100+ ft)

• Reduces freezing issues in cold environments

• Heavy-duty filtered control valve minimizes stopping time when the handle is released

Big Gun Full Flow System

• Maintains a zero-pressure-drop path for air and abrasive flow

• Each 1 PSI gain or loss equals approximately 1.5% production change

• Ideal for #7 and #8 nozzle applications

• Includes premium APV II abrasive metering valve for precision media flow

• Full-port couplings ensure unrestricted abrasive travel

800 CFM Moisture Separator Upgrade Available (Not Included)

1-1/2″ Galvanized Piping / 2″ Inlet

• Corrosion-resistant for long-term use

Heavy-Duty Full Port Ball Valves

Extended Life Schedule 80 Heavy-Duty Nipple

• High wear resistance for extended service life

Bolt Clamps on Pusher Line

• Allows easy field repairs and maintenance

Normally Closed Valves

• APV II metering valve with quadruple plunger seal eliminates abrasive carry-over

• Solid machined Tungsten Carbide plunger and sleeve provide superior durability

• 1″ NPT cleanout port for easy maintenance and drainage

• Full-flow Auto Air Valve enables rapid start/stop control

• Filtered control valve reduces delay when releasing control handle

• Relieving handle design reduces air use and enhances response time

Blowdown Muffler

• Reduces operational noise during depressurization

11″ Adjustable Spider

• Adjustable for various abrasive media types

• Prevents abrasive weight from resting on pop-up during hopper feed

6″ Fast-Fill Pop-Up & Skirted Pop-Up Gasket

• Larger opening minimizes refill time

• Skirted gasket design improves sealing and prevents “burping”

• Ideal for large-grit abrasive applications

Union End Ball Valves

• Allow maintenance or repair without dumping abrasive contents

Full Load Lifting Eyes

• Enables safe lifting, transport, and positioning of the vessel
