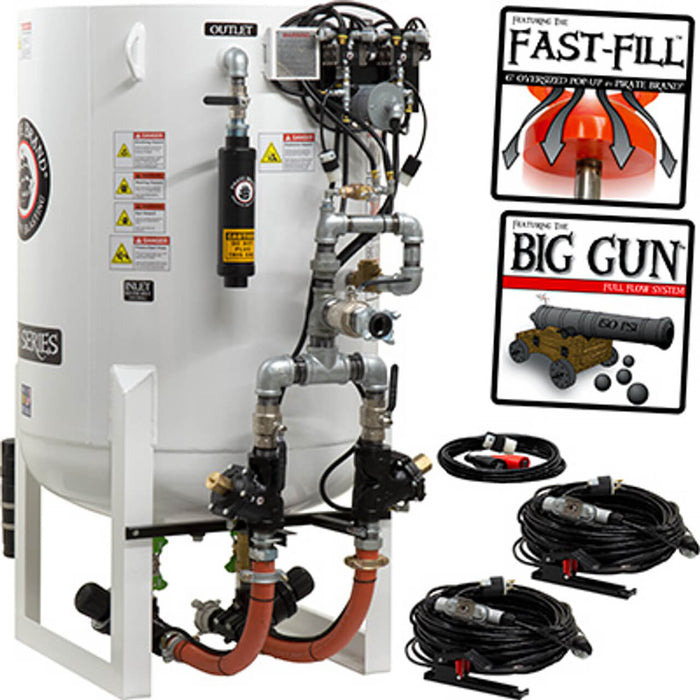

20.0 cu ft Stationary Electric Blast Pot – Dual Outlet Big Gun Full Flow System with 1-1/2″ Piping

Part Number: 888-4942-33900PB-E
Weight: 845.00 LBS
Category: Abrasive Blast Pot / Sandblasting Machine

Configuration:

• Stationary Blast Pot – Dual Outlet

• 20.0 CU. FT. (570 Liters)

• 150 PSI (10.3 BAR)

• Pressure Hold System

• Electric Operation with Cord-Mounted Abrasive Cut-Off Feature (12VDC)

• Overall Height (OAH): 65″

• Includes:

  • 11″ Umbrella

  • 6″ Fast-Fill™ Pop-Up

  • (2) APV II Valves with Tungsten Carbide Sleeves & Auto Air Valves

  • Big Gun Full Flow System

  • Union End Ball Valve

  • 1-1/2″ Piping / 2″ Inlet

  • (2) 110′ Control Cords & (2) Control Handle #2

  • 5-Year / 10-Year Warranty*

• Note: When using steel abrasives, Electric Control Handle #2 (888-2263-401PB) and Sealed Connector(s) (PB-31131) are required.

• Documents:
  • Brochure
  • Manual
  • How It Works
  • Warranty

Features & Benefits – SPH Electric APV II Big Gun Full Flow System

20.0 CU. FT. Capacity (570 Liters)

• 150 PSI vessel (10.3 BAR)

• A.S.M.E. Section VIII Division 1 certified

• CRN approved for all provinces

Pressure Hold System

• Reduces abrasive consumption and media waste

• Minimizes moisture-related issues

• Provides smoother, more efficient start/stop control

Electric Controls (12VDC)

• Ensures faster response on long hose runs (100+ ft)

• Helps prevent freezing in cold climates

• Heavy-duty filtered control valve reduces stop time

Big Gun Full Flow System

• Maintains zero pressure drop for consistent blasting performance

• Every 1 PSI gain or loss affects up to 1.5% of production output

• Designed for #7 and #8 nozzles

• Premium APV II abrasive metering valve provides precise media control

• Full-port coupling offers unrestricted air and abrasive flow

800 CFM Moisture Separator Upgrade Available (Not Included)

1-1/2″ Galvanized Piping / 2″ Inlet

• Corrosion-resistant heavy-duty design

Heavy-Duty Full Port Ball Valves

Extended Life Schedule 80 Heavy-Duty Nipple

• Engineered for superior wear resistance and long service life

Bolt Clamps on Pusher Line

• Allows easy field maintenance and repair

Normally Closed Valves

• APV II metering valve with quadruple plunger seal prevents abrasive carry-over

• Solid machined Tungsten Carbide plunger & sleeve ensures long-lasting precision

• 1″ NPT cleanout port enables vessel drainage and obstruction access

• Full-flow Auto Air Valve enables quick start/stop operation

• Filtered control valve minimizes delay on handle release

• Relieving handle design reduces air consumption

Blowdown Muffler

• Lowers noise levels during depressurization

11″ Adjustable Spider

• Adapts to various abrasive media types and sizes

• Prevents abrasive weight from resting on the pop-up during hopper feed

6″ Fast-Fill Pop-Up & Skirted Pop-Up Gasket

• Significantly reduces refill time

• Skirted gasket design improves sealing and prevents abrasive “burping”

• Ideal for large-grit abrasive use

Union End Ball Valves

• Allow valve servicing without dumping abrasive from the vessel

Full Load Lifting Eyes

• Enables safe and secure handling, placement, and transpor
