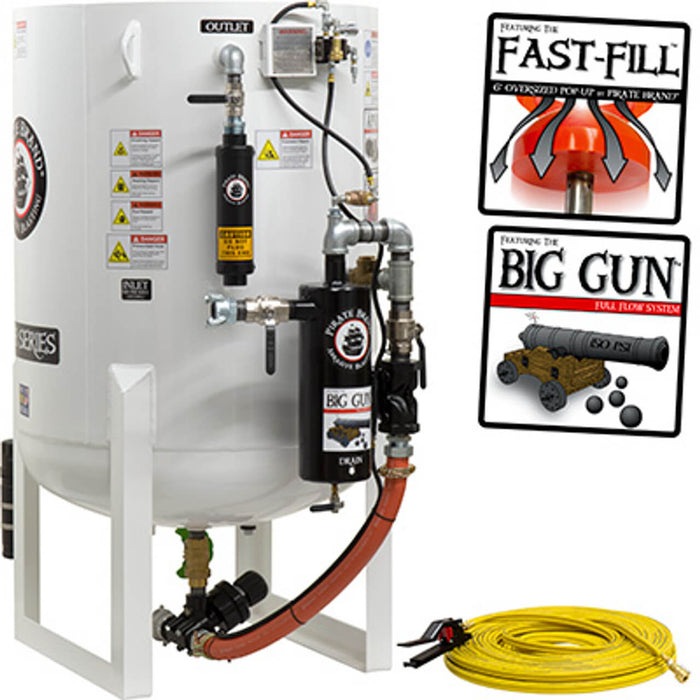

20.0 cu ft Stationary Pneumatic Blast Pot – Single Outlet Pressure Hold System with APV II Valve & Tungsten Carbide Sleeve, 1-1/2″ Piping w/ Big Gun Moisture Separator
Part Number: 888-0931-33904PB-E
Category: Abrasive Blast Pot / Sandblasting Machine
Configuration:
-
Stationary Blast Pot – Single Outlet
-
20.0 CU. FT. (570 Liters)
-
150 PSI (10.3 BAR)
-
Pressure Hold System
-
Pneumatic Operation
-
Overall Height (OAH): 65″
-
Includes:
-
11″ Umbrella
-
6″ Fast-Fill™ Pop-Up
-
APV II w/ Tungsten Carbide Sleeve & Auto Air Valve
-
Big Gun Full Flow System
-
Union End Ball Valve
-
1-1/2″ Piping w/ Big Gun Moisture Separator
-
110′ Twin-Line Assembly & Control Handle #2
-
5-Year / 10-Year Warranty*
-
Features & Benefits – SPH Pneumatic APV II Big Gun Full Flow System
20.0 CU. FT. Capacity (570 Liters)
-
150 PSI vessel (10.3 BAR)
-
A.S.M.E. Section VIII Division 1 certified
-
CRN for all provinces
Pressure Hold System
-
Reduces abrasive consumption
-
Minimizes moisture problems
-
Ensures smoother starts and stops
Big Gun Full Flow System
-
Provides a zero pressure drop path for air and abrasive to the nozzle
-
Every 1 PSI gain or loss equals approximately 1.5% production change
-
Ideal for #7 and #8 nozzles
-
Includes premium APV II abrasive metering valve standard
-
Full-port coupling ensures unrestricted flow to the nozzle
Big Gun 350 CFM Heavy-Duty Moisture Separator
1-1/2″ Galvanized Piping for Corrosion Resistance
Heavy-Duty Full Port Ball Valves
Extended Life Schedule 80 Heavy-Duty Nipple
-
Withstands abrasive wear for longer service life
Bolt Clamps on Pusher Line
-
Simplifies field repairs and maintenance
Normally Closed Valves
-
APV II premium abrasive metering valve with quadruple plunger seal eliminates air and abrasive carry-over
-
Prevents plunger and seal jamming in regulated low-pressure or steel abrasive use
-
Solid machined tungsten carbide plunger & sleeve for superior wear resistance
-
1″ NPT cleanout port provides quick access to remove obstructions or drain the vessel
-
Full-flow auto air valve allows for fast starts and stops
-
Heavy-duty filtered control valve minimizes stopping time when control handle is released
-
Relieving control handle reduces air consumption and improves stopping speed
Blowdown Muffler
-
Reduces loud noise during depressurization
11″ Adjustable Spider
-
Fully adjustable for various abrasive media types and sizes
-
Keeps abrasive weight off the pop-up, ensuring proper sealing during hopper feed

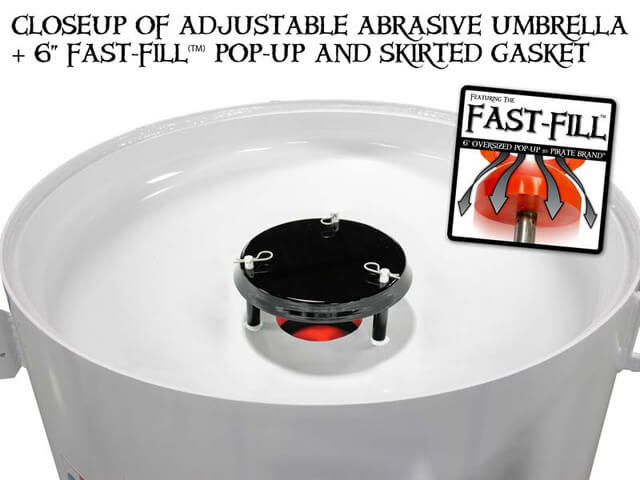

6″ Fast-Fill Pop-Up & Skirted Pop-Up Gasket
-
Larger Fast-Fill Pop-Up significantly reduces refill times
-
Skirted Pop-Up Gasket cuts through abrasive for proper sealing
-
Prevents “burping” commonly seen with hopper feed systems
-
Essential when using large grit sizes
Union End Ball Valves
-
Allow for easy shutoff during maintenance without dumping abrasive
Full Load Lifting Eyes
-
Enables safe lifting and transport for placement or maintenance
