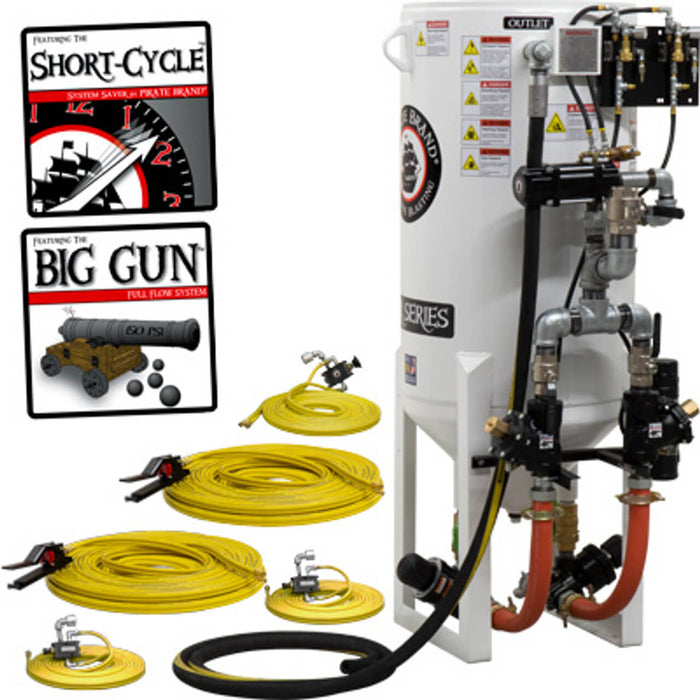

10.0 cu ft Stationary Pneumatic Blast Pot – 2 Outlets, Short Cycle with Pressure Release & Wall Mounted Abrasive Cut-Off Feature, 66" OAH

Part Number: 888-3741-33950PB-E
Weight: 607.00 lbs
Category: Abrasive Blast Pot / Sandblasting Machine

Configuration:

• Stationary Blast Pot

• 10.0 CU. FT. (285 Liters)

• 150 PSI (10.3 BAR)

• 2 Outlets

• Short Cycle – Pressure Release System (Pneumatic)

• Wall Mounted Abrasive Cut-Off Feature

• 66" Overall Height (OAH)

• Includes:

  • 9" Umbrella

  • (2) APV II w/ TC Sleeve / Combination Valve

  • Big Gun Full Flow System

  • Union End Ball Valve

  • 1-1/2" Piping / 2" Inlet

  • (2) 110' Twinline Assemblies

  • (2) Control Handle #2

  • 5-Year / 10-Year Warranty*

• Literature:
  • 📄 Brochure
  • 📄 Manual
  • 📄 How it Works

Short-Cycle System Saver

Short-cycle blasters are designed to handle the demanding effects of quick on-off blasting while maintaining the convenience of a pressure release system.
Standard pressure release (SPR) blasters work well in blast rooms and can automatically refill when connected to an overhead hopper. However, frequent short blasting intervals (under 10 minutes) can cause abrasive overfill, damaging the pop-up and causing sealing issues — leading to abrasive "burping" and premature valve wear.

Pirate Brand Short-Cycle Blasters solve this by remaining pressurized when the control handle is released while including a remote blow-down button for quick depressurization and refilling without leaving the blast area.

Features & Benefits of Short-Cycle – SPR Pneumatic Stationary w/ Big Gun Full Flow System

A. 10.0 CU. FT. Capacity (285 Liters)

• 150 PSI vessel (10.3 BAR)

• A.S.M.E. Section VIII Division 1

• CRN approved for all provinces

B. Short Cycle Pressure Release System

• Automatically blows down the vessel when palm button control is activated

• Low maintenance design

• Simple troubleshooting for in-field repairs

C. Big Gun Full Flow System Provides

• Zero pressure drop path for air and abrasive travel

• For every 1 PSI gained or lost = 1.5% production difference

• Full port coupling blast hose connection for unrestricted flow

D. 800 CFM Moisture Separator (Upgrade Available, Not Included)

E. 1-1/2\" Galvanized Piping for Corrosion Resistance / 2\" Inlet

F. Heavy Duty Full Port Ball Valves

G. Extended Life Schedule 80 Heavy Duty Nipple

• Withstands abrasive wear for longer lifespan

H. Bolt Clamps on Pusher Line

• Simplifies field repair and maintenance

I. APV II / Combination Valve

• Automatic Plunger Valve II (APV II) with quadruple plunger seal arrangement prevents air/abrasive carry-over and jamming

• Tungsten carbide plunger & sleeve for exceptional wear resistance

• 1" NPT cleanout port provides quick access for clearing obstructions or draining the vessel

• Combination Valve acts as a 2-in-1 system to stop air blasting and relieve pressure when palm button is activated

• Relieving control handle reduces air consumption and stops the system quickly

J. 15' Blowdown Hose Assembly for Remote Mounting

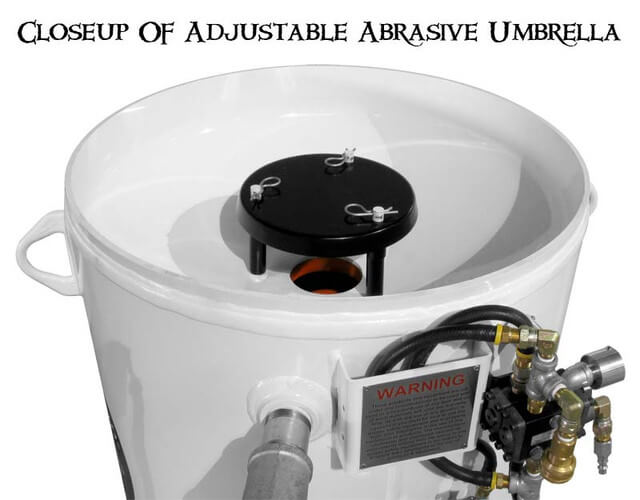

K. 9" Adjustable Spider

• Fully adjustable for different abrasive media

• Keeps abrasive weight off the pop-up, ensuring proper sealing

L. Skirted Pop-Up Gasket

• Knives through abrasive to assist in sealing

• Reduces abrasive burping

• Essential for large grit applications

M. Union End Ball Valves

• Allow shut-off of abrasive for maintenance without dumping the vessel

N. Full Load Lifting Eyes

• Enable safe lifting and transport for placement or repair
