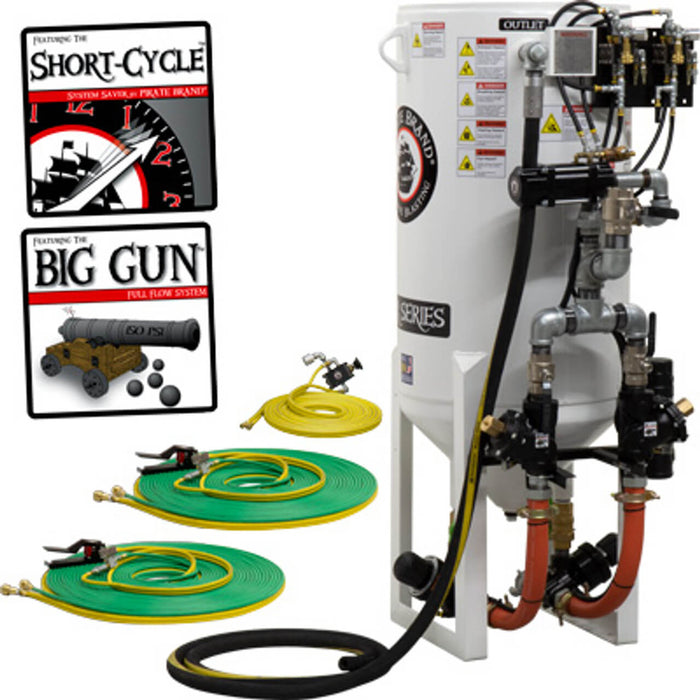

10.0 cu ft Stationary Pneumatic Blast Pot – 2 Outlets, Short Cycle with Pressure Release & Hose Mounted Abrasive Cut-Off Feature, 66" OAH

The 10.0 cu ft Stationary Pneumatic Blast Pot – 2 Outlets with Short Cycle Pressure Release & Hose Mounted Abrasive Cut-Off Feature is designed for efficient abrasive blasting operations, particularly in environments where frequent on-off blasting is required.

Product Overview:

• Part Number: 888-1741-33950PB-E

• Weight: 607.00 lbs

• Capacity: 10.0 CU. FT. (285 Liters)

• Pressure Rating: 150 PSI (10.3 BAR)

• System Type: Pneumatic with Short Cycle Pressure Release

• Outlets: 2

• Overall Height (OAH): 66"

• Included Components:

  • 9" Umbrella

  • (2) APV II with TC Sleeve/Combination Valve

  • Big Gun Full Flow System

  • Union End Ball Valve

  • 1-1/2" Piping / 2" Inlet

  • (2) 110' Twinline Assemblies

  • (2) Control Handle #2 (5-Year / 10-Year Warranty)

• Literature:
  • Brochure

  • Manual



    How it Works



Key Features & Benefits:

A. 10.0 CU. FT. Capacity (285 Liters):

• 150 PSI Vessel (10.3 BAR)

• ASME Section VIII Division 1 Certification

• CRN for All Provinces
  Ensures a durable and safe operation, meeting industry standards.

B. Short Cycle Pressure Release System:

• Automatic Blowdown when the palm button control is activated.

• Low Maintenance Design for easier operation and troubleshooting.

• Simple In-Field Repairs for quick fixes, reducing downtime.

C. Big Gun Full Flow System:

• Zero Pressure Drop Path for air and abrasive, ensuring consistent production.

• A Must for #7 & #8 Nozzles, ensuring efficient abrasive blasting with minimal restrictions.

• Full Port Coupling Blast Hose Connection guarantees an unrestricted path for air and abrasive, maximizing performance.

D. Big Gun 350 CFM Heavy Duty Moisture Separator:

• Keeps the system dry by separating moisture from the abrasive air, ensuring optimal performance.

E. 1-1/2" Galvanized Piping for Corrosion Resistance:

• Durable Piping ensures the longevity of the system even in harsh environments.

F. Heavy Duty Full Port Ball Valves:

• Ensures smooth flow and durability under heavy use.

G. Extended Life Schedule 80 Heavy Duty Nipple:

• Withstands Abrasive Wear for longer operational life.

H. Bolt Clamps on Pusher Line:

• Easier Field Repairs when necessary.

I. APV II/Combination Valve:

• Automatic Plunger Valve II (APV II) for precise abrasive metering.

• Tungsten Carbide Plunger & Sleeve for superior wear resistance and consistent tolerances.

• Cleanout Port to clear obstructions and allow easier maintenance.

J. 15' Blowdown Hose Assembly:

• Allows for remote mounting and easy depressurization/refilling of the blast pot.

K. 9" Adjustable Spider:

• Fully Adjustable for different media types and sizes.

• Keeps abrasive weight off the pop-up, ensuring proper sealing and smooth operation.

L. Skirted Pop-Up Gasket:

• Assists in Sealing and helps with abrasive burping problems commonly seen with hopper feed systems.

M. Union End Ball Valves:

• Allows for maintenance without spilling abrasive by shutting off the abrasive flow at the bottom of the pot.

N. Full Load Lifting Eyes:

• Facilitates easy lifting and transportation for maintenance or repairs.
