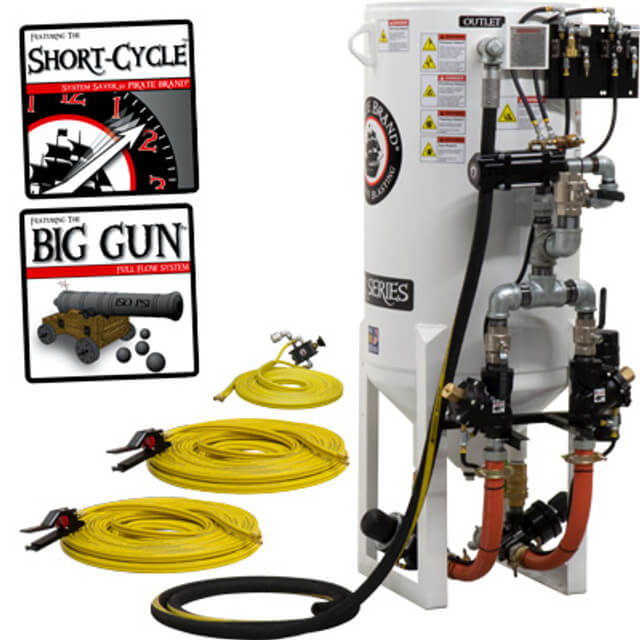

10.0 cu ft Stationary Pneumatic Blast Pot – 2 Outlets, Short Cycle with Pressure Release, APV II Valves & 1-1/2" Piping / 2" Inlet

Part Number: 888-0741-33950PB-E
Weight: 607.00 lbs
Category: Abrasive Blast Pot / Sandblasting Machine

Configuration:

• Stationary Blast Pot

• 10.0 CU. FT. (285 Liters) Capacity

• 150 PSI (10.3 BAR) Pressure Rating

• 2 Outlets

• Short-Cycle Pneumatic System

• 66" Overall Height (OAH)

• Includes: 9" Umbrella, APV II w/ TC Sleeve/Combination Valve, Big Gun Full Flow System, 1-1/2" Piping / 2" Inlet

• (2) 110' Twinline Assemblies & (2) Control Handles #2 (5 Year / 10 Year Warranty)

• Literature:
  • Brochure

  • Manual



    How it Works



Features & Benefits of Short-Cycle Pneumatic Stationary Big Gun Full Flow System:

A. 10.0 CU. FT. Capacity (285 Liters)

• 150 PSI Vessel (10.3 BAR)

• A.S.M.E. Section VIII Division 1 Certified

• CRN for All Provinces

B. Short Cycle Pressure Release System

• Automatically blows down the vessel when palm button control is activated

• Low maintenance design

• Simple troubleshooting for in-field repairs

C. Big Gun Full Flow Systems Provide

• Zero pressure drop path for air & abrasive to travel to the blast nozzle

• Every 1 PSI gain/loss = 1.5% production

• Full port coupling blast hose connection ensures unrestricted path for air & abrasive to nozzle

D. Big Gun 350 CFM Heavy Duty Moisture Separator

• Additional moisture control

E. 1-1/2" Galvanized Piping for Corrosion Resistance

• Durable and resistant to corrosion

F. Heavy Duty Full Port Ball Valves

• Improved flow control

G. Extended Life Schedule 80 Heavy Duty Nipple

• Withstands abrasive wear for longer life

H. Bolt Clamps on Pusher Line

• Easier field repairs

I. APV II/Combination Valve

• Automatic plunger valve II (APV II) for abrasive metering

• Tungsten carbide plunger & sleeve for superior wear rates and consistent tolerances

• 1" NPT cleanout port for easy access to obstructions

J. 15' Blowdown Hose Assembly for Remote Mounting

• Convenient blowdown control

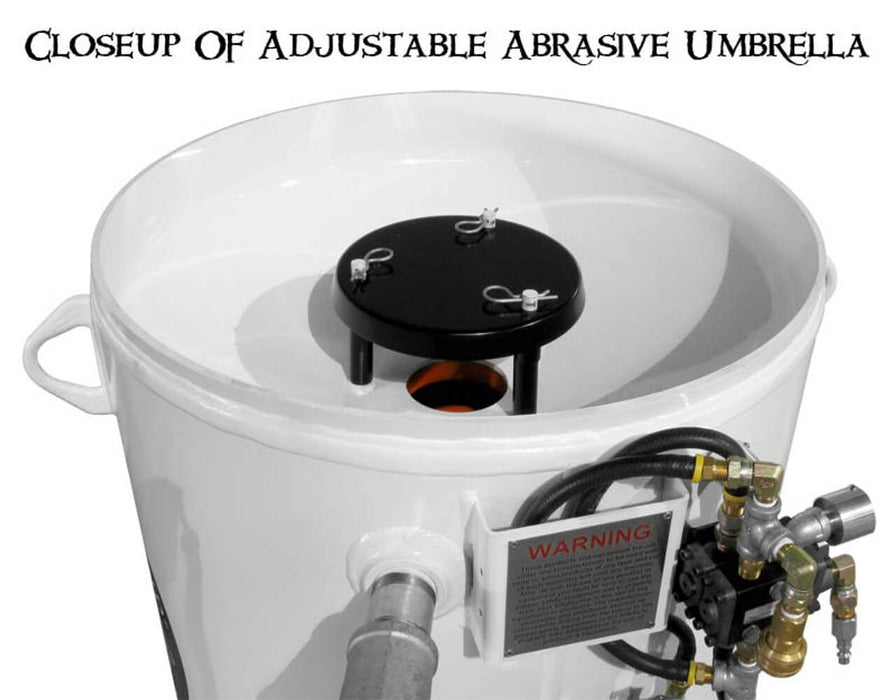

K. 9" Adjustable Spider

• Adjustable for different media types & sizes

• Helps seal properly when abrasive is hopper-fed from above

L. Skirted Pop-Up Gasket

• Skirted design assists in sealing

• Prevents abrasive burping

M. Union End Ball Valves

• Shut-off valves for maintenance without spilling abrasive

N. Full Load Lifting Eyes

• Lifting and transportation for placement and repair
