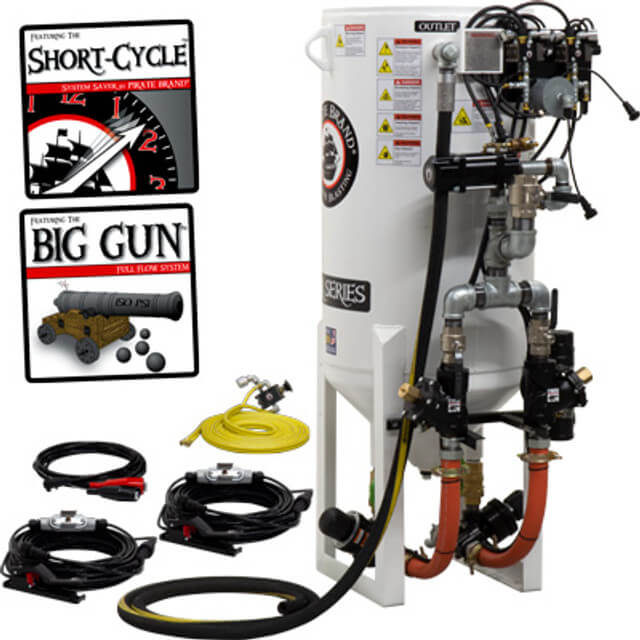

10.0 cu ft Stationary Electric Blast Pot – 2 Outlets with (2) APV II Valves, Big Gun Full Flow System, 1-1/2″ Piping / 2″ Inlet
Part Number: 888-4742-33910PB-E
Weight: 607.00 lbs
Category: Abrasive Blast Pot / Sandblasting Machine
Configuration:
Stationary Blast Pot – Dual Outlet (2 Outlets)
10.0 CU. FT. (285 Liters)
150 PSI (10.3 BAR)
Electric Pressure Release System
Cord-Mounted Abrasive Cut-Off Feature
Overall Height (OAH): 66″
-
Includes:
9″ Umbrella
(2) APV II w/ TC Sleeve / Combination Valve
Big Gun Full Flow System
Union End Ball Valve
1-1/2″ Piping / 2″ Inlet
(2) 110′ Control Cords & (2) Control Handles #2
5-Year / 10-Year Warranty*
-
Literature:
When Using Steel Abrasives:
Electric Control Handle #2 (888-2263-401PB) and Sealed Connector(s) (PB-31131) are required.
Features & Benefits – SPR Electric Stationary Big Gun Full Flow System
A. 10.0 CU. FT. Capacity (285 Liters)
150 PSI vessel (10.3 BAR)
A.S.M.E. Section VIII Division 1 certified
CRN approved for all provinces
B. Pressure Release System
Automatically blows down the vessel when control handle is released
Low maintenance design for reliable performance
Simplified in-field troubleshooting for quick service
C. Electric Controls – 12VDC System
Enables faster start/stop response when operating over 100 feet of blast hose
Prevents freezing issues in cold weather environments
Heavy-duty filtered control valve minimizes stopping time upon handle release
D. Big Gun Full Flow System Provides:
Zero pressure drop air/abrasive path
Each 1 PSI gain/loss equals roughly 1.5% production change
Full-port coupling hose connection ensures unrestricted flow
E. 800 CFM Moisture Separator Upgrade (Optional, Not Included)
F. 1-1/2″ Galvanized Piping / 2″ Inlet
Provides long-lasting corrosion resistance
G. Heavy Duty Full Port Ball Valves
Maximizes flow and system durability
H. Extended Life Schedule 80 Heavy Duty Nipple
Withstands abrasive wear, providing longer life expectancy
I. Bolt Clamps on Pusher Line
Simplifies field maintenance and replacement
J. Combination Valve / APV II Valve
Combination Valve: dual-function design stops air blasting and relieves pressure when control handle is released
Automatic Plunger Valve II (APV II): features a quadruple plunger seal arrangement that eliminates air/abrasive carry-over and prevents jamming during regulated low-pressure or steel abrasive use
Solid machined tungsten carbide plunger & sleeve deliver superior wear resistance
1″ NPT cleanout port for removing obstructions and draining the vessel without removing the valve
K. 15′ Blowdown Hose Assembly
For remote mounting and easier maintenance

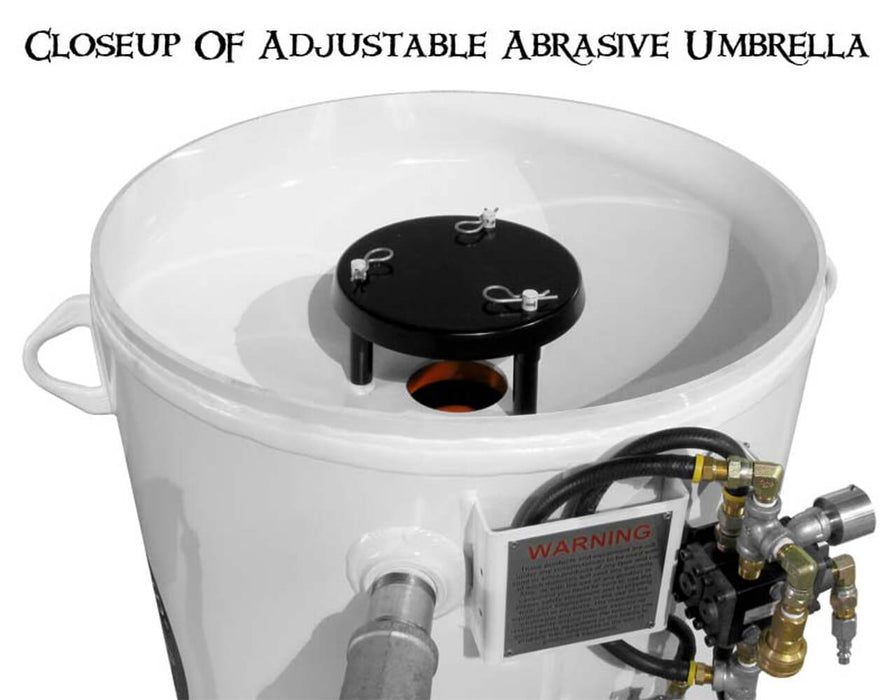

L. 9″ Adjustable Spider
Fully adjustable for various abrasive media sizes
Keeps abrasive weight off pop-up for better sealing during hopper feed
M. Skirted Pop-Up Gasket
Knifes through abrasive for consistent sealing
Prevents "burping" issues seen in hopper feed systems
Recommended for large grit applications
N. Union End Ball Valves
Allow shutoff at the pot's base for maintenance without dumping abrasive
O. Full Load Lifting Eyes
Enable safe lifting and transport for positioning or maintenance
