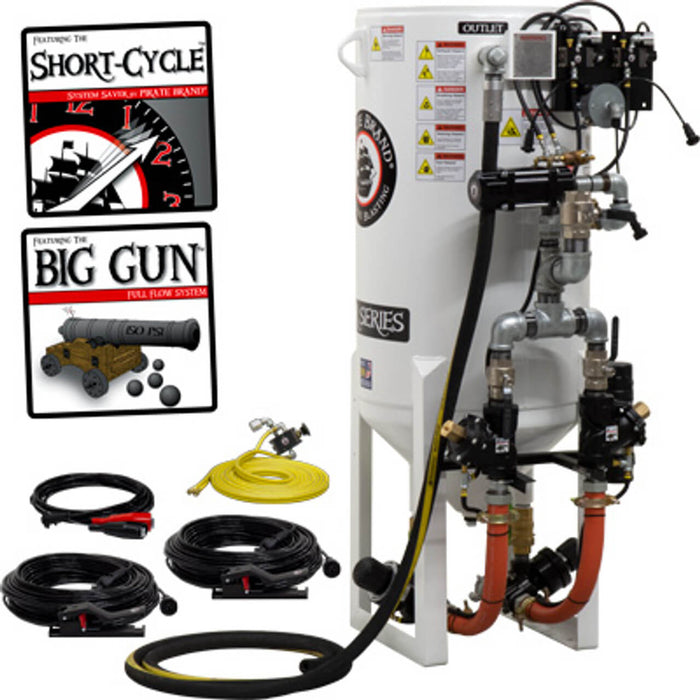

10.0 cu ft Stationary Electric Blast Pot – 2 Outlets, Pressure Release System with (2) APV II Valves & Tungsten Carbide Sleeves, 1-1/2" Piping / 2" Inlet
Part Number: 888-0742-33910PB-E
Weight: 607.00 lbs
Category: Abrasive Blast Pot / Sandblasting Machine
Configuration:
Stationary Blast Pot – Dual Outlet (2 Outlets)
10.0 CU. FT. (285 Liters)
150 PSI (10.3 BAR)
Electric Pressure Release System
Overall Height (OAH): 66\"
-
Includes:
9\" Umbrella
(2) APV II w/ TC Sleeve / Combination Valve
Big Gun Full Flow System
Union End Ball Valve
1-1/2\" Piping / 2\" Inlet
(2) 110' Control Cords & (2) Control Handles #2
5-Year / 10-Year Warranty*
-
Literature:
When Using Steel Abrasives:
Electric Control Handle #2 (Part #888-2263-401PB) and Sealed Connector(s) (PB-31131) are required.
Features & Benefits – SPR Electric Stationary Big Gun Full Flow System
A. 10.0 CU. FT. Capacity (285 Liters)
150 PSI Vessel (10.3 BAR)
A.S.M.E. Section VIII Division 1 Certified
CRN for all provinces
B. Pressure Release System
Automatically blows down the vessel when the control handle is released
Low maintenance design for extended service life
Simple troubleshooting for quick in-field repairs
C. Electric Controls – 12VDC System
Designed for long runs of over 100 feet of blast hose
Improves start/stop response speed
Helps prevent freezing issues in cold weather conditions
Heavy-duty filtered control valve minimizes stopping time when the control handle is released
D. Big Gun Full Flow System Provides:
Zero pressure drop path for air & abrasive to travel to the blast nozzle
For every 1 PSI gained/lost, expect a 1.5% production change
Full port coupling hose connection ensures unrestricted flow
E. Moisture Control
800 CFM Moisture Separator Upgrade Available (not included)
F. 1-1/2\" Galvanized Piping / 2\" Inlet
Provides superior corrosion resistance for long service life
G. Heavy-Duty Full Port Ball Valves
Enables smooth and unrestricted airflow
H. Extended Life Schedule 80 Heavy-Duty Nipple
Withstands abrasive wear and ensures longer operational lifespan
I. Bolt Clamps on Pusher Line
Allows easy field repair and replacement
J. Combination Valve / MPV Valve
Combination Valve: 2-in-1 design stops air blasting and relieves pressure when the control handle is released
Manual Plunger Valve (MPV): simple, reliable, and provides wide abrasive flow adjustment range
K. 15' Blowdown Hose Assembly
Allows remote mounting for convenience and safe operation

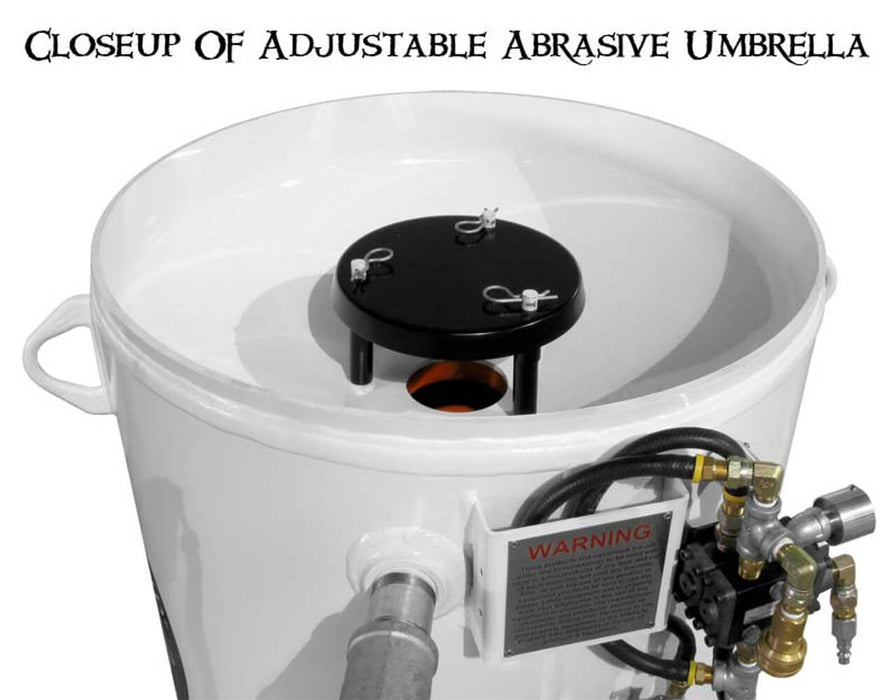

L. 9\" Adjustable Spider
Fully adjustable for multiple abrasive media types and sizes
Ensures the pop-up seals properly during hopper-fed abrasive delivery
M. Skirted Pop-Up Gasket
Cuts through abrasive for reliable sealing
Prevents common "burping" problems
Essential for large-grit abrasive use
N. Union End Ball Valves
Enables shut-off at the bottom for valve maintenance without dumping abrasive
O. Full Load Lifting Eyes
Allows safe lifting and vessel transport for positioning, maintenance, or repair
