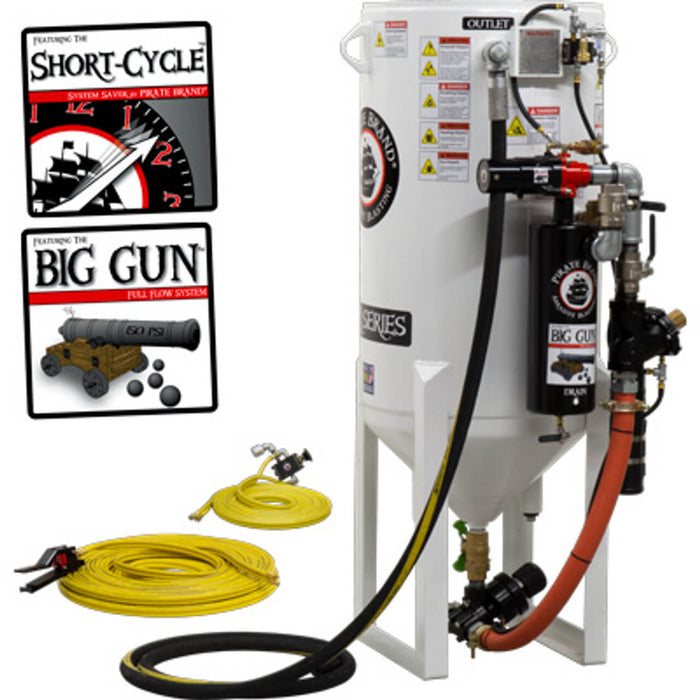

10.0 cu ft Stationary Pneumatic Blast Pot – Single Outlet with Short Cycle Pressure Release, APV II/Combination Valve, 1-1/2" Piping & Big Gun Moisture Separator

Part Number: 888-0731-33954PB-E
Weight: 607 lbs
Category: Abrasive Blast Pot / Sandblasting Machine

Configuration: Stationary
Capacity: 10.0 CU. FT. (285 Liters)
Pressure Rating: 150 PSI (10.3 BAR)
System Type: Pneumatic
Outlets: Single
Overall Height (OAH): 66″

Included Components

• 9″ Umbrella

• APV II / Combination Valve

• Big Gun Full Flow System

• Union End Ball Valve

• 1-1/2″ Galvanized Piping / 2″ Inlet

• (2) 110′ Twinline Assembly & (2) Control Handle #2

• 5-Year / 10-Year Warranty*

Features & Benefits of Short-Cycle Pneumatic Stationary Big Gun Full Flow Systems

10.0 CU. FT. Capacity (285 Liters)

• 150 PSI vessel (10.3 BAR)

• A.S.M.E. Section VIII Division 1 certified

• CRN registered for all provinces

Short Cycle Pressure Release System

• Automatic blow-down when the palm button control is activated

• Low-maintenance design

• Simple troubleshooting for easy field repairs

Big Gun Full Flow System

• Zero pressure drop path for air and abrasive to travel to the blast nozzle

• Each 1 PSI gain or loss equals a 1.5% change in production

• Full port coupling for unrestricted air and abrasive flow to the nozzle

Big Gun 350 CFM Heavy-Duty Moisture Separator

• (Not included) Upgrade option for better moisture control

1-1/2″ Galvanized Piping / 2″ Inlet

• Corrosion-resistant piping for extended durability

Heavy Duty Full-Port Ball Valves

• Maximum airflow and optimized system performance

Extended Life Schedule 80 Heavy-Duty Nipples

• Resistant to abrasive wear for longer life and less maintenance

Bolt Clamps on Pusher Line

• Quick and easy repairs in the field

APV II / Combination Valve

• Premium abrasive metering valve with quadruple plunger seals

• Solves air & abrasive carryover issues and prevents jamming

• Solid tungsten carbide plunger & sleeve for exceptional wear resistance

• 1″ NPT cleanout port to clear obstructions or drain the vessel

Relieving Control Handle

• Reduces air consumption and shortens stopping times

15′ Blowdown Hose Assembly for Remote Mounting

• Conveniently control blowdown from a distance

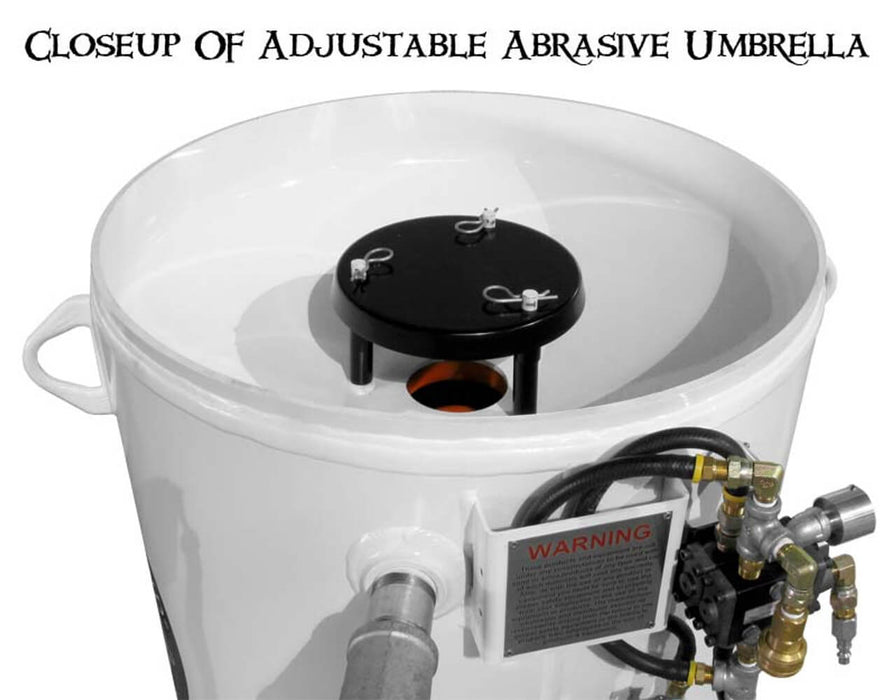

9″ Adjustable Spider

• Fully adjustable for different media types and sizes

• Keeps the weight of the abrasive off the pop-up valve for a secure seal

Skirted Pop-Up Gasket

• Knifes through abrasive for better sealing

• Reduces abrasive "burping" issues commonly seen with hopper feed blast pots

• Ideal for large grit applications

Union End Ball Valves

• Allows for easy shut-off of abrasive for maintenance or valve replacement without unloading the entire vessel

Full Load Lifting Eyes

• Facilitates secure lifting and transportation for placement or repair

Suggested Applications

The 10.0 cu ft Stationary Pneumatic Blast Pot with Short Cycle Pressure Release is designed for high-frequency, industrial sandblasting applications, ensuring consistent performance under demanding conditions.

Perfect for:

• Heavy Equipment Maintenance

• Marine & Shipbuilding Surface Preparation

• Steel Fabrication & Surface Cleaning

• Bridge & Structural Repair

With its advanced short-cycle pressure release system, this abrasive blast pot allows for quick operation without sacrificing efficiency, offering a high-quality solution for any industrial blasting needs.
