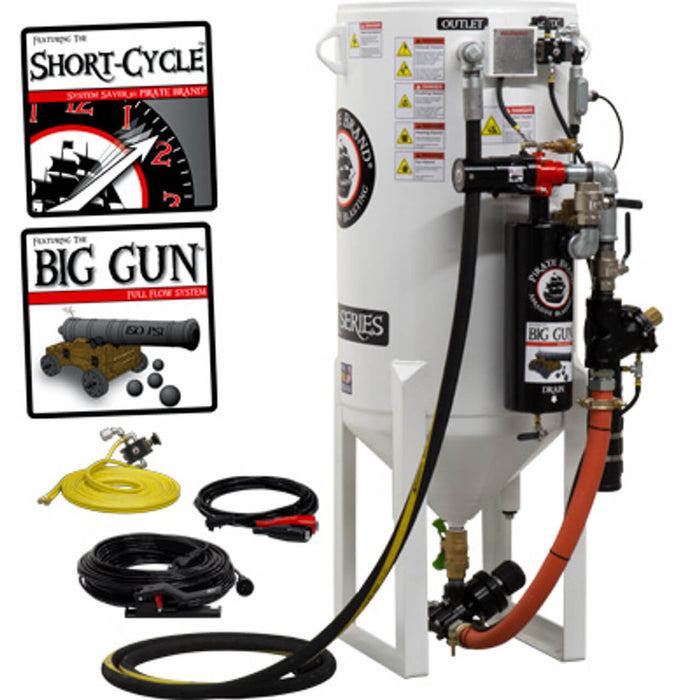

10.0 cu ft Stationary Electric Blast Pot – Single Outlet with APV II W/TC Sleeve/Combination Valve, 1-1/2" Piping & Big Gun Moisture Separator

Part Number: 888-0732-33954PB-E
Weight: 607 lbs
Category: Abrasive Blast Pot / Sandblasting Machine

Configuration: Stationary
Capacity: 10.0 CU. FT. (285 Liters)
Pressure Rating: 150 PSI (10.3 BAR)
System Type: Pneumatic
Outlets: Single
Overall Height (OAH): 66″

Included Components

• 9″ Umbrella

• APV II / Combination Valve

• Big Gun Full Flow System

• Union End Ball Valve

• 1-1/2″ Galvanized Piping / 2″ Inlet

• (2) 110′ Twinline Assembly & (2) Control Handle #2

• 5-Year / 10-Year Warranty

Features & Benefits of Short-Cycle Pneumatic Stationary Big Gun Full Flow Systems

10.0 CU. FT. Capacity (285 Liters)

• 150 PSI vessel (10.3 BAR)

• A.S.M.E. Section VIII Division 1 certified

• CRN registered for all provinces

Short Cycle Pressure Release System

• Automatic blow-down activated by palm button control

• Low-maintenance design for durability

• Simple troubleshooting for in-field repairs

Big Gun Full Flow System

• Zero pressure drop path for air and abrasive to travel to the blast nozzle

• 1 PSI gain or loss = 1.5% production change in abrasive blasting

• Full port coupling blast hose connection for unrestricted air & abrasive flow to the nozzle

Big Gun 350 CFM Heavy-Duty Moisture Separator

• (Not included) Upgrade option for enhanced moisture control

1-1/2″ Galvanized Piping / 2″ Inlet

• Corrosion-resistant piping for long-lasting performance

Heavy Duty Full-Port Ball Valves

• Maximum airflow for superior system performance

Extended Life Schedule 80 Heavy-Duty Nipples

• Resistant to abrasive wear, ensuring longer life and fewer maintenance requirements

Bolt Clamps on Pusher Line

• Quick and efficient field repairs

APV II / Combination Valve

• Premium abrasive metering valve with quadruple plunger seals

• Solves air & abrasive carryover and seal jamming issues

• Tungsten carbide plunger & sleeve for superior wear resistance

• 1″ NPT cleanout port for easy obstruction clearance and draining without removing the valve

Relieving Control Handle

• Reduces air consumption

• Shortens stopping times when handle is released

15′ Blowdown Hose Assembly for Remote Mounting

• Conveniently control blowdown from a distance

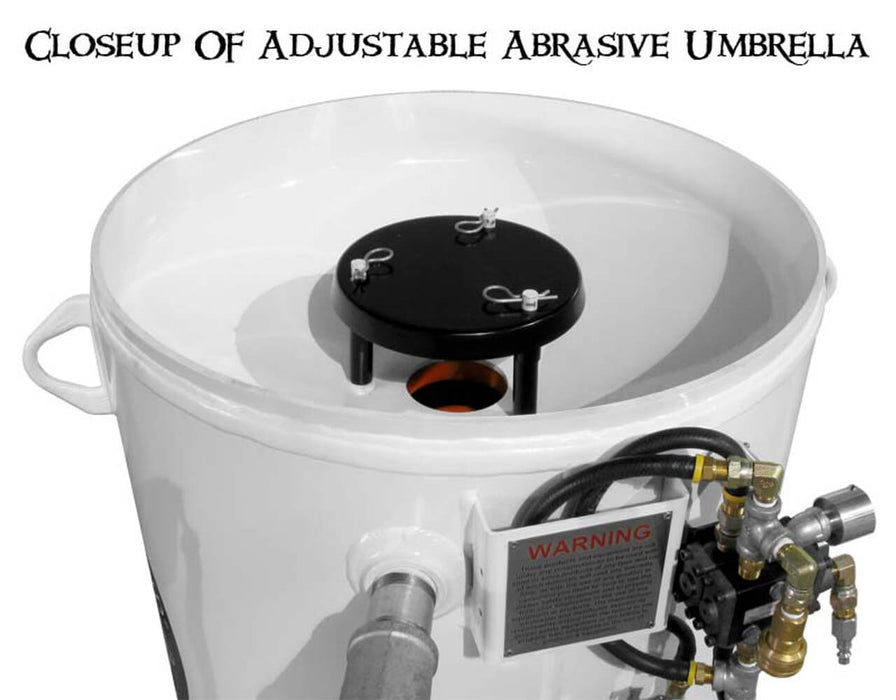

9″ Adjustable Spider

• Fully adjustable for different media types and sizes

• Keeps abrasive weight off the pop-up valve, ensuring secure sealing

Skirted Pop-Up Gasket

• Knife-like action through abrasive for better sealing

• Prevents abrasive “burping” issues common with hopper feed blast pots

• Essential for large grit sizes

Union End Ball Valves

• Allows for easy shut-off of abrasive for maintenance or repair

Full Load Lifting Eyes

• Easily transportable for placement and repairs
