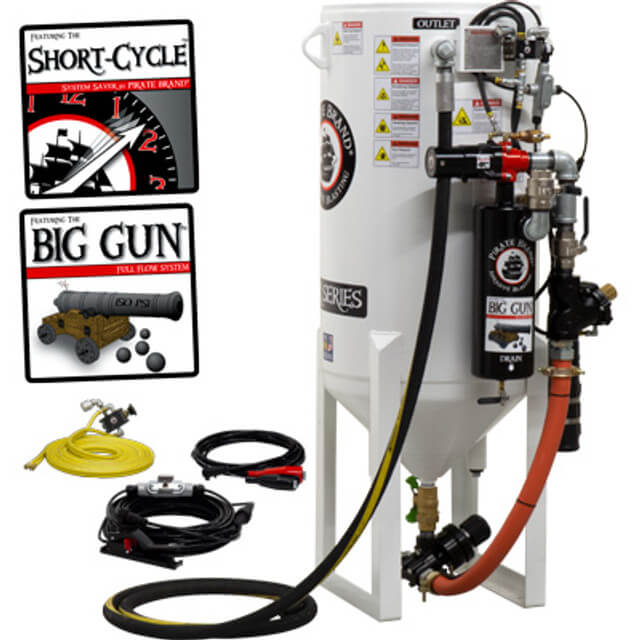

10.0 cu ft Stationary Electric Blast Pot – Single Outlet Short Cycle with APV II, Big Gun Full Flow System & 1-1/2" Piping with Big Gun Moisture Separator

Part Number: 888-4732-33954PB-E
Weight: 607.00 lbs
Category: Abrasive Blast Pot / Sandblasting Machine

Configuration: Stationary
Capacity: 10.0 CU. FT. (285 Liters)
Pressure Rating: 150 PSI (10.3 BAR)
System Type: Electric, Single Outlet
Overall Height (OAH): 66"

Included Components

• 9" Umbrella

• APV II / Combination Valve

• Big Gun Full Flow System

• Union End Ball Valve

• 1-1/2" Piping with Big Gun Moisture Separator

• (2) 110' Twinline Assembly & (2) Control Handle #2

• 5-Year / 10-Year Warranty

Features & Benefits of Short-Cycle Electric Stationary Big Gun Full Flow Systems

10.0 CU. FT. Capacity (285 Liters)

• 150 PSI vessel (10.3 BAR)

• A.S.M.E. Section VIII Division 1 certified

• CRN registered for all provinces

Short Cycle Pressure Release System

• Automatically blows down when palm button control is activated

• Low maintenance design for longevity

• Simple troubleshooting for in-field repairs

Big Gun Full Flow System

• Zero pressure drop path for air & abrasive to travel to the blast nozzle

• 1 PSI gain/loss = 1.5% production in abrasive blasting

• Full port coupling blast hose connection for unrestricted flow

Big Gun 350 CFM Heavy Duty Moisture Separator

• Available upgrade for moisture control

1-1/2" Galvanized Piping / 2" Inlet

• Corrosion-resistant piping ensures long-lasting operation

Heavy Duty Full-Port Ball Valves

• Maximize air flow for superior system performance

Extended Life Schedule 80 Heavy-Duty Nipples

• Resistant to abrasive wear for extended product life

Bolt Clamps on Pusher Line

• Field repairs made easier

APV II / Combination Valve

• Premium abrasive metering valve with quadruple plunger seals

• Tungsten carbide plunger & sleeve for superior wear

• 1" NPT cleanout port for easy obstruction removal

Relieving Control Handle

• Reduces air consumption and shortens stopping times

15' Blowdown Hose Assembly for Remote Mounting

• Conveniently control blowdown from a distance

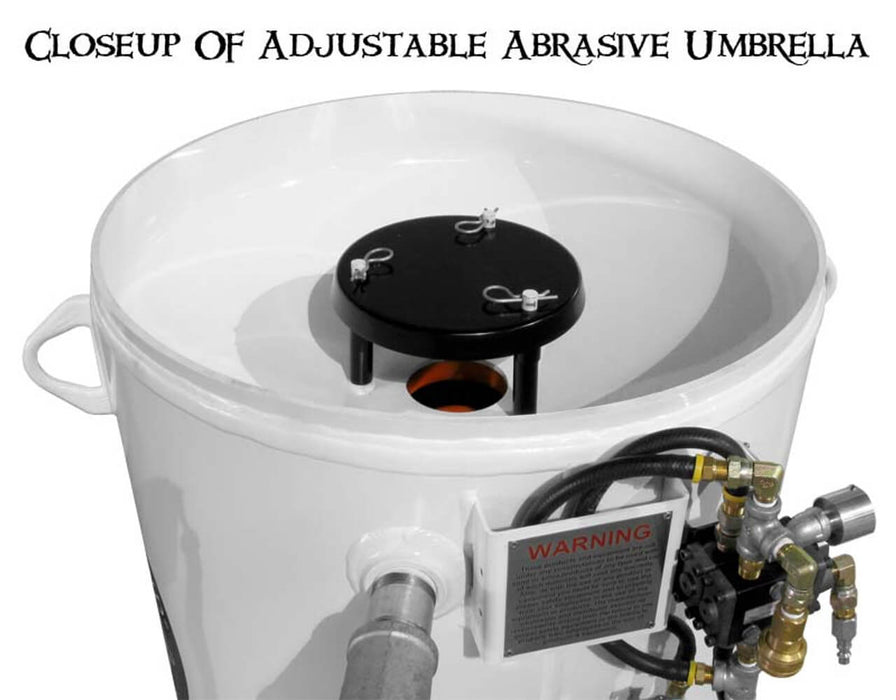

9" Adjustable Spider

• Fully adjustable for different media types and sizes

Skirted Pop-Up Gasket

• Knife-like action through abrasive for better sealing

• Prevents abrasive “burping”

Union End Ball Valves

• Allows easy shut-off of abrasive during maintenance or repairs

Full Load Lifting Eyes

• Easily transportable for placement and repairs
