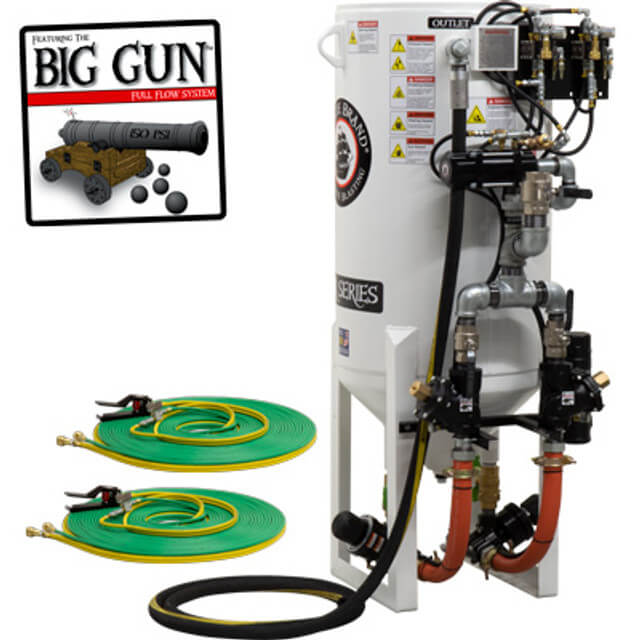

10.0 cu ft Stationary Pneumatic Blast Pot – Dual-Outlet Pressure Release System with Hose-Mounted Abrasive Cut-Off Feature, 66" Overall Height

Part Number: 888-1741-33910PB-E
Weight: 607 lbs
Category: Abrasive Blast Pot / Sandblasting Machine

Configuration: Stationary
Capacity: 10.0 CU. FT. (285 Liters)
Pressure Rating: 150 PSI (10.3 BAR)
System Type: Pneumatic / Pressure Release
Outlets: Dual (2)
Overall Height (OAH): 66″

Included Components

• 9″ Umbrella

• (2) APV II Valves with Tungsten Carbide Sleeves & Combination Valves

• Big Gun Full Flow System

• Union End Ball Valve

• 1-1/2″ Galvanized Piping / 2″ Inlet

• (2) 110′ Twin-Line Assemblies & (2) Control Handles #2

• 5-Year / 10-Year Warranty*

Features & Benefits of SPR Pneumatic Stationary Big Gun Full Flow Systems

10.0 CU. FT. Capacity (285 Liters)

• 150 PSI vessel (10.3 BAR)

• A.S.M.E. Section VIII Division 1 certified

• CRN registered for all provinces

Pressure Release System

• Automatically depressurizes the vessel when control handles are released

• Simple, low-maintenance design

• Easy troubleshooting for in-field service

Big Gun Full Flow System

• Zero pressure drop path for air and abrasive flow to the blast nozzle

• Every 1 PSI gained or lost equals roughly 1.5% change in production efficiency

• A must for #7 and #8 nozzles

• Full-port coupling ensures unrestricted abrasive and air flow

Hose-Mounted Abrasive Cut-Off Feature

• Convenient operator control placement at the hose for quick shutoff

• Improves safety and blasting precision in multi-operator setups

Optional 800 CFM Moisture Separator Upgrade

• (Not included) Provides superior moisture control for consistent performance

1-1/2″ Galvanized Piping / 2″ Inlet

• Corrosion-resistant heavy-duty piping designed for extended system longevity

Heavy-Duty Full-Port Ball Valves

• Maximize airflow and system performance under industrial load

Extended Life Schedule 80 Heavy-Duty Nipples

• Superior resistance to abrasive wear for longer service intervals

Bolt Clamps on Pusher Line

• Simplify on-site maintenance and allow quick field repairs

(2) Combination Valves / APV II Valves

• Dual 2-in-1 design stops blasting and relieves vessel pressure

• APV II premium metering valves with quadruple plunger seals prevent carryover and jamming

• Solid tungsten carbide plunger and sleeve ensure precision wear resistance

• 1″ NPT cleanout port allows easy access to remove obstructions or drain the vessel

• Relieving control handles minimize air consumption and shorten stop times

15′ Blowdown Hose Assembly for Remote Mounting

9″ Adjustable Spider

• Adjustable for multiple abrasive media types and grain sizes

• Keeps abrasive weight off pop-up valve to ensure proper sealing

Skirted Pop-Up Gasket

• Knifes through abrasive for improved sealing

• Reduces “burping” issues with hopper-fed systems

• Essential for large-grit abrasive applications

Union End Ball Valves

• Allow bottom shut-off for maintenance or valve replacement without emptying abrasive

Full-Load Lifting Eyes

• Enable secure lifting, placement, and transport for service or relocation

Suggested Applications

The 10.0 cu ft Stationary Pneumatic Dual-Outlet Blast Pot with Hose-Mounted Abrasive Cut-Off is engineered for high-production, multi-operator blasting across demanding industrial settings.

Perfect for:

• Shipbuilding & Marine Maintenance

• Bridge & Structural Steel Projects

• Tank & Pipeline Surface Preparation

• Steel Fabrication & Foundry Environments

• Heavy Equipment Refurbishment

• Concrete Surface Cleaning & Coating Removal

Built for reliability, operator control, and maximum air efficiency, this dual-outlet system ensures consistent blasting performance with durable, industry-grade components.
