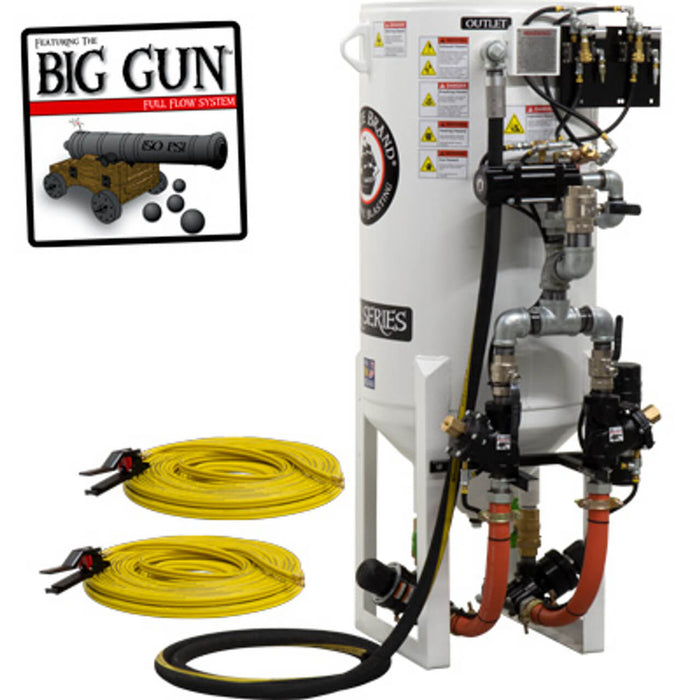

10.0 cu ft Stationary Pneumatic Blast Pot – Dual-Outlet Pressure Release System with (2) APV II Tungsten Carbide Sleeves & Combination Valves, 1-1/2" Piping / 2" Inlet

Part Number: 888-0741-33910PB-E
Weight: 607 lbs
Category: Abrasive Blast Pot / Sandblasting Machine

Configuration: Stationary
Capacity: 10.0 CU. FT. (285 Liters)
Pressure Rating: 150 PSI (10.3 BAR)
System Type: Pneumatic / Pressure Release
Outlets: Dual (2)
Overall Height (OAH): 66″

Included Components

• 9″ Umbrella

• (2) APV II Valves with Tungsten Carbide Sleeves & Combination Valves

• Big Gun Full Flow System

• Union End Ball Valve

• 1-1/2″ Galvanized Piping / 2″ Inlet

• (2) 110′ Twin-Line Assemblies & (2) Control Handles #2

• 5-Year / 10-Year Warranty*

Features & Benefits of SPR Pneumatic Stationary Big Gun Full Flow Systems

10.0 CU. FT. Capacity (285 Liters)

• 150 PSI vessel (10.3 BAR)

• A.S.M.E. Section VIII Division 1 certified

• CRN approved for all provinces

Pressure Release System

• Automatically depressurizes the vessel when control handles are released

• Low-maintenance, operator-friendly design

• Simple troubleshooting for quick field servicing

Big Gun Full Flow System

• Zero-pressure-drop air and abrasive pathway ensures maximum blasting efficiency

• Every 1 PSI change equals approximately 1.5% productivity difference

• Designed for #7 and #8 blast nozzles

• Full-port coupling provides unrestricted air and abrasive flow

Moisture Separator Upgrade (Optional)

• 800 CFM heavy-duty moisture separator available for enhanced moisture control

1-1/2″ Galvanized Piping / 2″ Inlet

• Corrosion-resistant for extended system life and reliability

Heavy-Duty Full-Port Ball Valves

• Ensures unrestricted flow and easy operation under pressure

Extended Life Schedule 80 Heavy-Duty Nipples

• Resists abrasive wear for longer operational life

Bolt Clamps on Pusher Line

• Allow fast and easy maintenance or field hose replacement

(2) Combination Valves / APV II Valves

• 2-in-1 design stops blasting and relieves vessel pressure when released

• APV II metering valve includes quadruple plunger seal to prevent air and abrasive carryover

• Solid machined tungsten carbide plunger & sleeve deliver exceptional wear resistance

• 1″ NPT clean-out port allows removal of obstructions or draining without valve removal

• Relieving control handle reduces air consumption and stopping times

15′ Blowdown Hose Assembly for Remote Mounting

9″ Adjustable Spider

• Adjustable for multiple media types and grain sizes

• Keeps abrasive weight off pop-up valve for a secure seal

Skirted Pop-Up Gasket

• Cuts through abrasive for airtight sealing

• Reduces “burping” seen in hopper-feed blast systems

• Essential for use with large-grit abrasives

Union End Ball Valves

• Allow for bottom shut-off during maintenance or valve repair

• Prevent unnecessary abrasive loss during service

Full-Load Lifting Eyes

• Enable safe lifting, transportation, and placement during setup or maintenance

Suggested Applications

This 10.0 cu ft Stationary Dual-Outlet Pneumatic Blast Pot is designed for industrial-grade sandblasting operations that require high productivity and multi-operator capability.

Ideal for:

• Shipyards & Marine Maintenance

• Bridges & Infrastructure Projects

• Pipeline & Tank Surface Preparation

• Steel Fabrication Shops

• Heavy Equipment Restoration

• Concrete Surface Blasting

Engineered for efficiency, durability, and continuous operation — this dual-outlet system delivers maximum airflow, even media distribution, and reliable performance for professional abrasive blasting environments.
