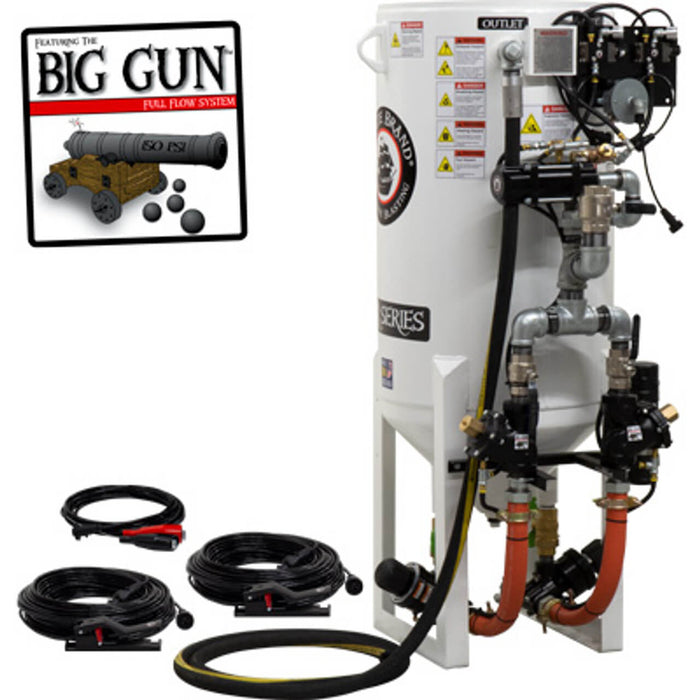

10.0 cu ft Stationary Electric Blast Pot – Dual-Outlet Pressure Release with (2) APV II Valves and TC Sleeve, 1-1/2" Piping & 2" Inlet

Part Number: 888-0742-33910PB-E
Weight: 607 lbs
Category: Abrasive Blast Pot / Sandblasting Machine

Configuration: Stationary
Capacity: 10.0 CU. FT. (285 Liters)
Pressure Rating: 150 PSI (10.3 BAR)
System Type: Electric / Pressure Release
Outlets: Dual (2)
Overall Height (OAH): 66″

Included Components

• 9″ Umbrella

• (2) APV II Tungsten Carbide Sleeves & Combination Valves

• Big Gun Full Flow System

• Union End Ball Valve

• 1-1/2″ Galvanized Piping / 2″ Inlet

• (2) 110′ Control Cord & (2) Control Handles #2

• 5-Year / 10-Year Warranty*

Features & Benefits of SPR Electric Stationary Big Gun Full Flow Systems

10.0 CU. FT. Capacity (285 Liters)

• 150 PSI vessel (10.3 BAR)

• A.S.M.E. Section VIII Division 1 certified

• CRN registered for all provinces

Pressure Release System

• Automatically depressurizes the vessel when control handles are released

• Simple, low-maintenance design

• Easy troubleshooting for in-field service

Electric Controls 12VDC

• Enhanced speed for starting and stopping operations over 100 feet of blast hose

• Helps mitigate freezing problems in colder environments

• Heavy-duty filtered control valve minimizes stopping time when the control handle is released

Big Gun Full Flow System

• Zero pressure drop path for air and abrasive to travel to the blast nozzle

• Every 1 PSI gained or lost equals 1.5% change in production efficiency

• A must for #7 and #8 nozzles

• Full-port coupling ensures unrestricted abrasive and air flow

Optional 800 CFM Moisture Separator

• (Not included) Provides superior moisture control for consistent blasting performance

1-1/2″ Galvanized Piping / 2″ Inlet

• Corrosion-resistant heavy-duty piping for long-lasting performance

Heavy-Duty Full-Port Ball Valves

• Maximizes airflow and system performance under industrial loads

Extended Life Schedule 80 Heavy-Duty Nipples

• Superior resistance to abrasive wear for extended service life

Bolt Clamps on Pusher Line

• Quick and easy on-site maintenance for faster repairs

(2) Combination Valves / APV II Valves

• Dual 2-in-1 design stops blasting and relieves vessel pressure

• APV II premium metering valves with quadruple plunger seals prevent carryover and jamming

• Solid tungsten carbide plunger and sleeve ensure precision wear resistance

• 1″ NPT cleanout port allows easy access to remove obstructions or drain the vessel

Relieving Control Handle

• Minimizes air consumption and shortens stop times when the control handle is released

15′ Blowdown Hose Assembly for Remote Mounting

9″ Adjustable Spider

• Fully adjustable for various media types and grain sizes

• Keeps abrasive weight off the pop-up valve for proper sealing

Skirted Pop-Up Gasket

• Knifes through abrasive for improved sealing

• Reduces “burping” issues with hopper-fed systems

• Essential for large-grit abrasive applications

Union End Ball Valves

• Allows bottom shut-off for maintenance or valve replacement without emptying abrasive

Full-Load Lifting Eyes

• Enables secure lifting and placement for service or relocation

Suggested Applications

The 10.0 cu ft Stationary Electric Blast Pot with Dual-Outlet Pressure Release is designed for high-production, multi-operator blasting in demanding industrial environments.

Perfect for:

• Heavy Equipment Maintenance

• Shipbuilding & Marine Surface Preparation

• Pipeline & Tank Coating

• Steel Fabrication & Surface Cleaning

• Bridge & Structural Repair

Built for reliability, control, and maximum air efficiency, this dual-outlet system ensures optimal blasting performance with industry-grade components.
