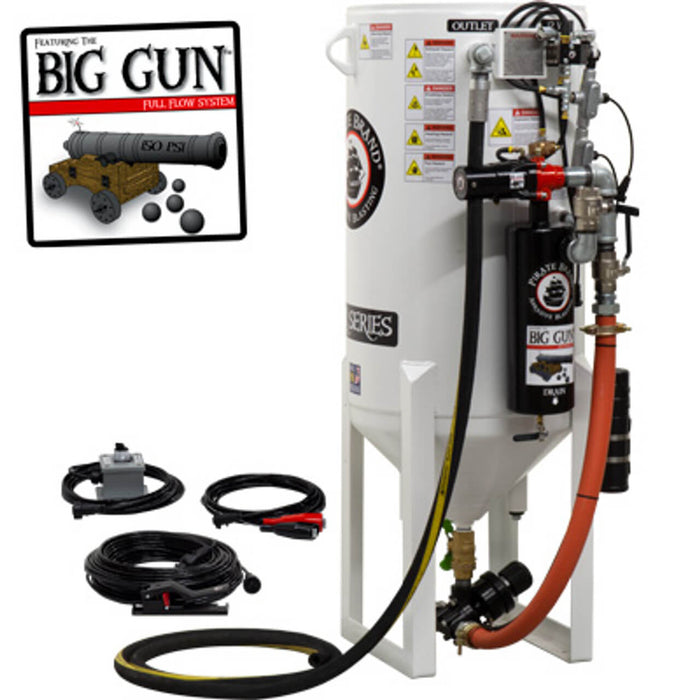

10.0 cu ft Stationary Electric Blast Pot – Single-Outlet Pressure Release System with Wall-Mounted Abrasive Cut-Off, 1-1/2" Piping & Big Gun Moisture Separator

Part Number: 888-5732-33914PB-E
Weight: 607 lbs
Category: Abrasive Blast Pot / Sandblasting Machine

Configuration: Stationary
Capacity: 10.0 CU. FT. (285 Liters)
Pressure Rating: 150 PSI (10.3 BAR)
System Type: Electric / Pressure Release
Overall Height (OAH): 66″

Included Components

• 9″ Umbrella

• APV II with Tungsten Carbide Sleeve & Combination Valve

• Big Gun Full Flow System

• Big Gun 350 CFM Moisture Separator

• Union End Ball Valve

• 1-1/2″ Galvanized Piping (Heavy-Duty)

• 110′ Control Cord & Control Handle #2

• 5-Year / 10-Year Warranty*

Note: When using steel abrasives, Electric Control Handle #2 (888-2263-401PB) and sealed connector(s) (PB-31131) are required.

Features & Benefits of SPR Electric Stationary Big Gun Full Flow Systems

10.0 CU. FT. Capacity (285 Liters)

• 150 PSI vessel (10.3 BAR)

• A.S.M.E. Section VIII Division 1 certified

• CRN registered for all provinces

Pressure Release System

• Automatically depressurizes the vessel when control handle is released

• Simple, low-maintenance design for industrial reliability

• Easy troubleshooting and servicing in the field

Electric Controls (12VDC)

• Provides rapid stop/start control when using over 100 ft of blast hose

• Reduces freezing issues during cold operations

• Heavy-duty filtered control valve decreases stopping time upon trigger release

Big Gun Full Flow System

• Delivers zero-pressure-drop path for air and abrasive to the nozzle

• Every 1 PSI gained or lost equals ~1.5% change in blasting productivity

• Ideal for #7 and #8 blast nozzles

• Full-port couplings ensure unrestricted abrasive flow

Big Gun 350 CFM Heavy-Duty Moisture Separator

• Keeps media dry and prevents clogs or uneven flow

• Reduces moisture-related wear inside the system

1-1/2″ Galvanized Piping for Corrosion Resistance

• Heavy-duty piping ensures long service life in harsh environments

Heavy-Duty Full-Port Ball Valves

• Allow high airflow and easy shut-off when needed

Extended Life Schedule 80 Heavy-Duty Nipples

• Built to withstand heavy abrasive wear over extended cycles

Bolt Clamps on Pusher Line

• Simplify maintenance and reduce downtime during hose repairs

Combination Valve / APV II Valve

• Dual-function valve stops blasting and relieves pressure simultaneously

• Premium Automatic Plunger Valve II (APV II) with quadruple plunger seal eliminates carryover and jamming

• Solid tungsten carbide plunger and sleeve deliver long wear life and precision fit

• 1″ NPT cleanout port allows debris removal and vessel drainage

15′ Blowdown Hose Assembly for Remote Mounting

9″ Adjustable Spider

• Adjustable for multiple abrasive types and grain sizes

• Keeps abrasive weight off pop-up, ensuring proper sealing during operation

Skirted Pop-Up Gasket

• Knifes through abrasive for airtight sealing

• Prevents “burping” issues with hopper-fed systems

• Ideal for coarse-grit applications

Union End Ball Valves

• Allow abrasive shut-off and maintenance without full vessel emptying

Full-Load Lifting Eyes

• Designed for secure lifting, placement, and maintenance handling

Suggested Applications

The 10.0 cu ft Stationary Electric Blast Pot with Wall-Mounted Abrasive Cut-Off is engineered for precision-controlled industrial sandblasting and continuous-duty operation.

Best suited for:

• Shipyard and Marine Surface Preparation

• Pipeline & Tank Cleaning

• Bridge and Infrastructure Maintenance

• Steel Fabrication Facilities

• Heavy Equipment Restoration

• Concrete Surface Preparation

Built for efficiency, control, and reliability — this system delivers consistent abrasive flow, easy control, and long-lasting durability under high-demand environments.
